BY136 - SILICON RECTIFIER DIODES

This page provides the datasheet information for the BY136, a member of the BY133 SILICON RECTIFIER DIODES family.

Datasheet Summary

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Pb / RoHS Free.

📥 Download Datasheet

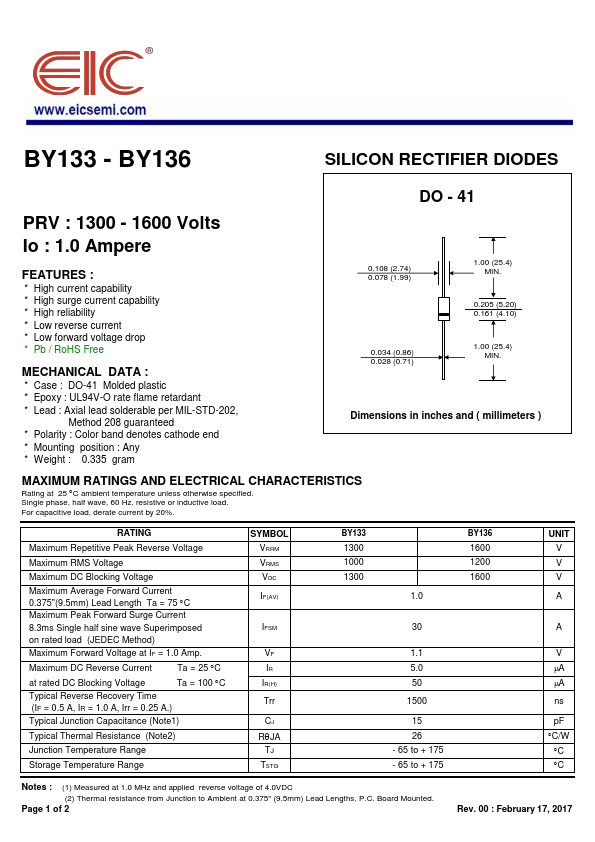

Datasheet preview – BY136

Datasheet Details

Part number BY136
Manufacturer EIC
File Size 245.15 KB
Description SILICON RECTIFIER DIODES
Datasheet download datasheet BY136 Datasheet

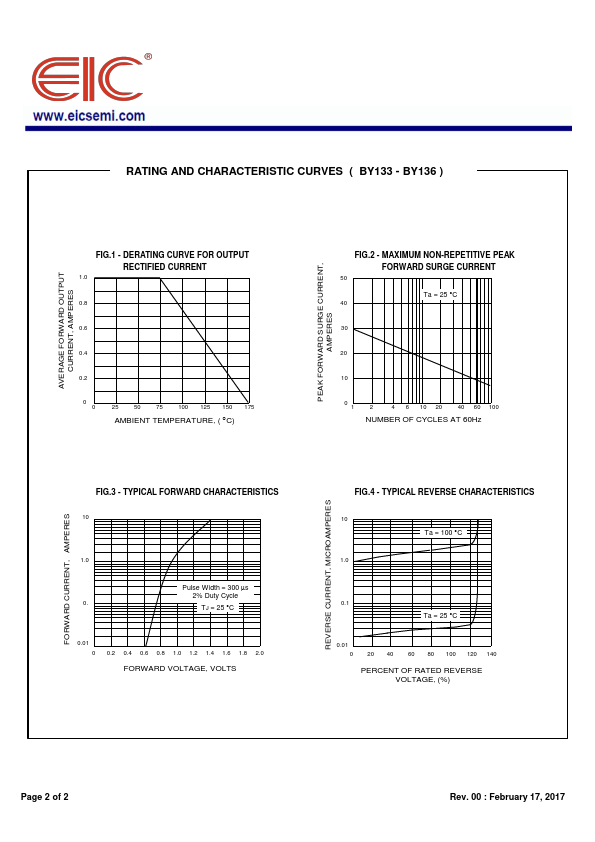

Additional preview pages of the BY136 datasheet.

📁 Similar Datasheet

  • BY133 - PLASTIC SILICON RECTIFIERS (PAN JIT)
  • BY133 - Sillicon Rectifier (UPM)
  • BY133 - GENERAL PURPOSE RECTIFIER (MEI SEMI)
  • BY133 - 1 Amp Rectifier (MCC)
  • BY133 - 1.0A Miniature Rectifier (SEP ELECTRONIC)
  • BY133 - Silicon Rectifiers (Diotec Semiconductor)
  • BY133 - AXIAL LEADED RECTIFIER DIODE (Sunmate)
  • BY133 - 1.0 SILICON RECTIFIER (SMC Diode)
  • BY133 - 1.0A HIGH VOLTAGE STANDARD DIODE (WON-TOP)
  • BY133 - General Purpose Silicon Rectifier (Luguang Electronic)
Other Datasheets by EIC
  • BY133 - SILICON RECTIFIER DIODES
  • BY133G - GLASS PASSIVATED JUNCTION BY133G SILICON RECTIFIERS

Full PDF Text Transcription

Click to expand full text
BY133 - BY136 SILICON RECTIFIER DIODES DO - 41 PRV : 1300 - 1600 Volts Io : 1.0 Ampere FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Pb / RoHS Free MECHANICAL DATA : * Case : DO-41 Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.335 gram 0.108 (2.74) 0.078 (1.99) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.205 (5.20) 0.161 (4.10) 1.00 (25.4) MIN. Dimensions in inches and ( millimeters ) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 C ambient temperature unless otherwise specified.
