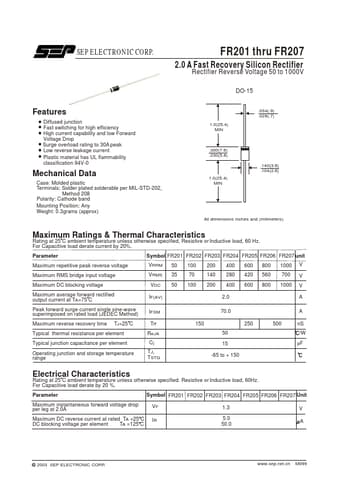

Part number:
FR205
Manufacturer:
SEP ELECTRONIC
File Size:
30.29 KB
Description:
2.0a fast recovery silicon rectifier.
* Diffused junction Fast switching for high efficiency High current capability and low Forward Voltage Drop Surge overload rating to 30A peak Low reverse leakage current Plastic material has UL flammability classification 94V-0 Mechanical Data Case: Molded plastic Terminals: Solder plated solderable p
FR205
SEP ELECTRONIC
30.29 KB
2.0a fast recovery silicon rectifier.
