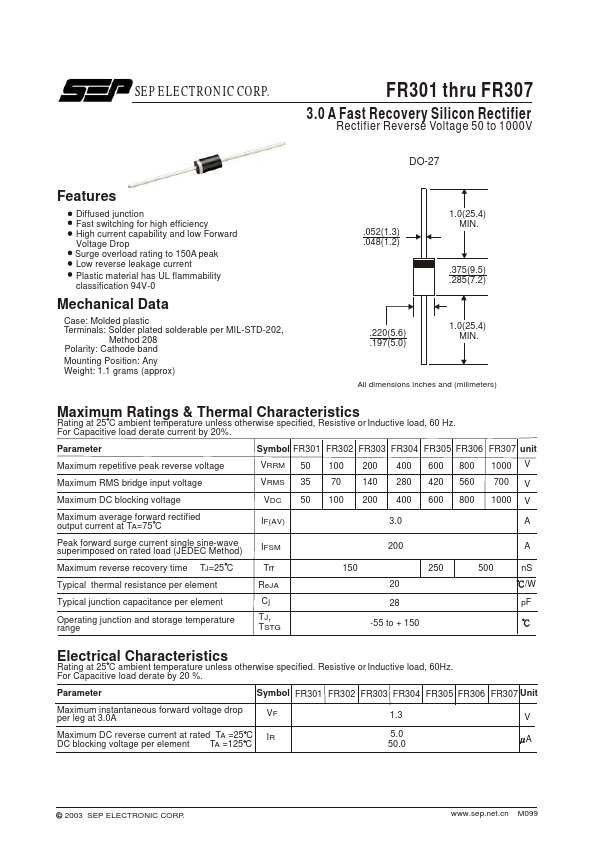

FR301 - 3.0A Fast Recovery Silicon Rectifier

Datasheet Details

Part number	FR301
Manufacturer	SEP ELECTRONIC
File Size	30.77 KB
Description	3.0A Fast Recovery Silicon Rectifier
Datasheet	FR301-SEPELECTRONIC.pdf

Diffused junction Fast switching for high efficiency High current capability and low Forward Voltage Drop Surge overload rating to 150A peak Low reverse leakage current Plastic material has UL flammability classification 94V-0 Mechanical Data Case: Molded plastic Terminals: Solder plated solderable per MIL-STD-202, Method 208 Polarity: Cathode band Mounting Position: Any Weight: 1.1 grams (approx) .052(1.3) .048(1.2) 1.0(25.4) MIN. .375(9.5) .285(7.2) .220(5.6) .197(5.0) 1.0(25.4) MIN. All.
