ES3FF, ES3AF - Super Fast Recovery Rectifier Diode

ES3FF Description

ES3AF THRU ES3KF Super Fast Recovery Rectifier Diode * .

ES3FF Features

* Io 3.0A
* VRRM 50V~800V
* Glass passivated chip
* High surge forward current capability

ES3FF Applications

* For general power supply single-phase rectifier
* Outline Dimensions and Mark SMAF .189(4.80) .173(4.40) .142(3.60) .134(3.40) .053(1.35) .045(1.15) 0.232 (5.9) .110(2.80) .057(1.45) .094(2.40) .053(1.35) 0.075 (1.9) 0.035(0.90)typical .009(0.22) .006(0.15) 0.106 (2.7) Dimensio

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ES3FF, ES3AF. Please refer to the document for exact specifications by model.

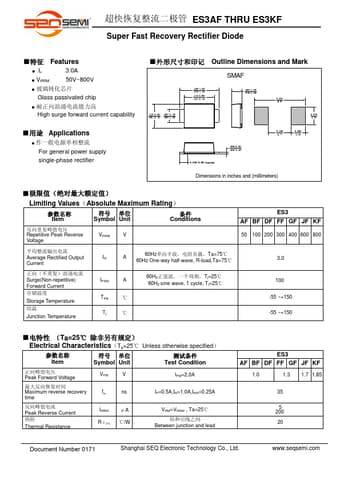

datasheet Preview Page 2

Datasheet Details

Part number
ES3FF, ES3AF
Manufacturer
SEQ
File Size
401.78 KB
Datasheet
ES3AF-SEQ.pdf
Description
Super Fast Recovery Rectifier Diode
Note
This datasheet PDF includes multiple part numbers: ES3FF, ES3AF.
Please refer to the document for exact specifications by model.
