SGM2035C Datasheet - SG Micro

RF Linear Regulators

SGM2035C Features

* 500mA Guaranteed Output Current

* Ultra Low Dropout Voltage

* Low Output Noise

* Thermal-Overload Protection

* Output Current Limit

* High PSRR (73dB at 1kHz)

* 1.8V Logic-Controlled Shutdown

* 110kΩ Pull Down Resistor at EN Pin

SGM2035C General Description

The SGM2035C is a low-power, low-noise, low-dropout, CMOS linear voltage regulator that operates from a 2.5V to 5.5V input voltage. The SGM2035C is the perfect choice for low voltage, low power applications. A low ground current makes this part attractive for battery operated power systems. The SGM2.

SGM2035C Datasheet (350.92 KB)

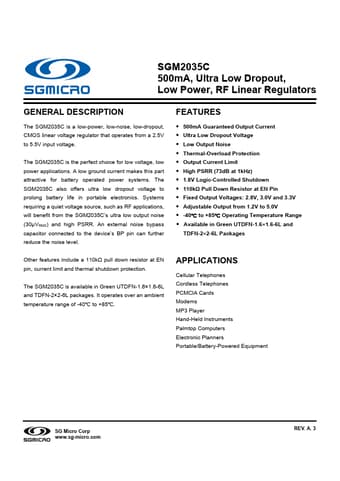

SGM2035C Datasheet Preview — Preview of SGM2035C PDF

Datasheet Details

Part number:

SGM2035C

Manufacturer:

SG Micro

File Size:

350.92 KB

Description:

Rf linear regulators.
