SGM2583 - Power Distribution Switch

SG Micro

📥 Download Datasheet

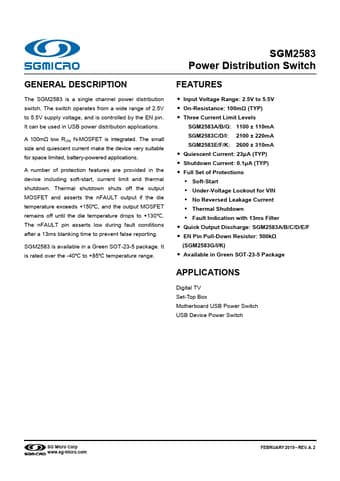

SGM2583 Datasheet Preview — Preview of SGM2583 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SGM2583
Manufacturer	SG Micro
File Size	788.90 KB
Description	Power Distribution Switch
Datasheet	SGM2583-SGMicro.pdf

SGM2583 Product details

Description

The SGM2583 is a single channel power distribution switch.

Features

are provided in the device including soft-start, current limit and thermal shutdown. Thermal shutdown shuts off the output MOSFET and asserts the nFAULT output if the die temperature exceeds +150℃, and the output MOSFET remains off until the die temperature drops to +130℃. The nFAULT pin asserts low during fault conditions after a 13ms blanking time to prevent false reporting. SGM2583 is available in a Green SOT-23-5 package. It is rated over the -40℃ to +85℃ temperature range.
