SGM450

High Accuracy Analog Output Temperature Sensor

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor SG Micro Corp SGM450A2XC5G/TR (Alt: SGM450A2XC5G/TR) EBV Elektronik 0 0
$0

SGM450 Datasheet (484.51 KB)

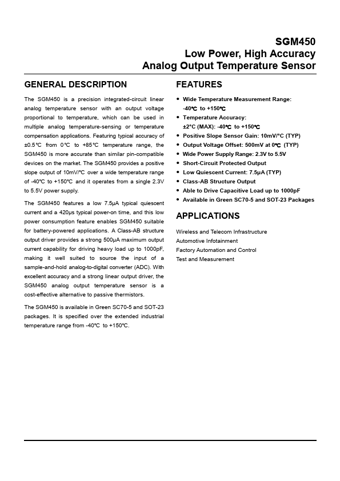

Preview of SGM450 PDF Datasheet

Datasheet Details

Part number:

SGM450

Manufacturer:

SG Micro

File Size:

484.51 KB

Description:

High accuracy analog output temperature sensor

SGM450 Features

* a low 7.5μA typical quiescent current and a 420μs typical power-on time, and this low power consumption feature enables SGM450 suitable for battery-powered applications. A Class-AB structure output driver provides a strong 500μA maximum output current capability for driving heavy load up to 1000pF,

SGM450 General Description

The SGM450 is a precision integrated-circuit linear analog temperature sensor with an output voltage proportional to temperature, which can be used in multiple analog temperature-sensing or temperature compensation applications. Featuring typical accuracy of ±0.5 ℃ from 0 ℃ to +85 ℃ temperature rang.
