TDA1220A, TDA1220A_SGS Datasheet - SGS-Ates

TDA1220A AM-FM QUALITY RADIO

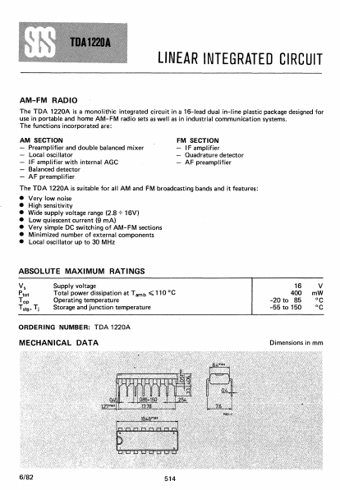

LINEAR INTEGRATED CIRCUIT AM-FM RADIO The TDA 1220A is a monolithic integrated circuit in a 16-lead dual in-line plastic package designed for use in portable and home AM-FM radio sets as well as in industrial communication systems. The functions incorporated are: AM SECTION Preamplifier and double balanced mixer Local oscillator IF amplifier with internal AGC Balanced detector AF preamplifier FM SECTION IF amplifier Quadrature detector AF preamplifier The TDA 1220A is suitable for all AM and.

TDA1220A Features

* Very low noise

* High sensitivity

* Wide supply voltage range (2.8';- 16V)

* Low quiescent current (9 mAl .

* Very simple DC switching of AM-FM sections

* Minimized number of external components

* Local oscillator up to 30 MHz ABSOL

TDA1220A_SGS-Ates.pdf

TDA1220A Datasheet Preview — This datasheet PDF includes multiple part numbers: TDA1220A, TDA1220A_SGS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TDA1220A, TDA1220A_SGS

Manufacturer:

SGS-Ates

File Size:

1.35 MB

Description:

Am-fm quality radio.

Note:

This datasheet PDF includes multiple part numbers: TDA1220A, TDA1220A_SGS.
Please refer to the document for exact specifications by model.
