TDA1220L - LOW VOLTAGE AM-FM RADIO

LINEAR INTEGRATED CIRCUIT LOW VOLTAGE AM-FM RADIO The TDA 1220L is a monolithic integrated circuit in a 16-lead dual in-line plastil:;package designed for use in 3V-4.5V-6V portable AM-FM radio receivers.

The functions incorporated are: AM SECTION Preamplifier and double balanced mixer One pin local oscillator IF amplifier with internal AGC Detector and audio preamplifier FM SECTION I F iIfflplifier~d limiter Quadratur~ d~tector AudittprEj;implifier High sensitivity and low noise Very

TDA1220L Features

* ;- AM sensitivity regulation facility High stability of electrical characteristics from 2V to 9V Very simple DC switching of AM-FM ABSOLU-r:~,;MA~IIVi"~M RATINGS Vs Ptot Top Tstg , Tj s~V:;l1bftage

TDA1220L-SGS.pdf

Preview of TDA1220L PDF

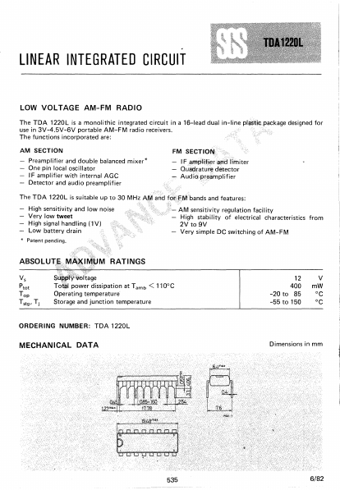

TDA1220L Datasheet Preview Page 2 TDA1220L Datasheet Preview Page 3

Datasheet Details

Part number:

TDA1220L

Manufacturer:

SGS

File Size:

419.34 KB

Description:

Low voltage am-fm radio.
