L2685 - POSITIVE VOLTAGE REGULATORS

This page provides the datasheet information for the L2685, a member of the L2605 POSITIVE VOLTAGE REGULATORS family.

📥 Download Datasheet

Datasheet preview – L2685

Datasheet Details

Part number L2685
Manufacturer SGS
File Size 114.50 KB
Description POSITIVE VOLTAGE REGULATORS
Datasheet download datasheet L2685 Datasheet
Additional preview pages of the L2685 datasheet.

📁 Similar Datasheet

  • L2685 - LOW DROPOUT VOLTAGE REGULATORS (STMicroelectronics)
  • L260 - Converter - Brake - Inverter Module (CBI1) (IXYS Corporation)
  • L2605 - LOW DROPOUT VOLTAGE REGULATORS (STMicroelectronics)
  • L2610 - LOW DROPOUT VOLTAGE REGULATORS (STMicroelectronics)
  • L2656 - High power GaAIAs infrared LED (Hamamatsu Corporation)
  • L2656-03 - High power GaAIAs infrared LED (Hamamatsu Corporation)
  • L2690 - High power GaAIAs infrared LED (Hamamatsu Corporation)
  • L2690-02 - High power GaAIAs infrared LED (Hamamatsu Corporation)
Other Datasheets by SGS
  • L2605 - POSITIVE VOLTAGE REGULATORS
  • L2610 - POSITIVE VOLTAGE REGULATORS

Full PDF Text Transcription

Click to expand full text

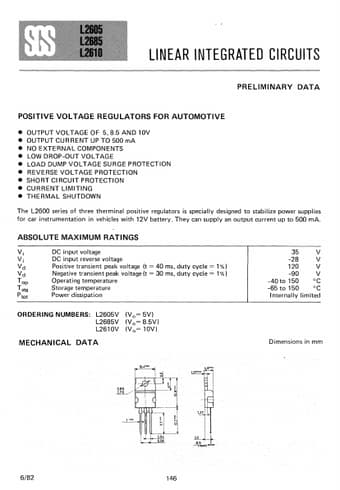

LINEAR INTEGRATED CIRCUITS PRELIMINARY DATA POSITIVE VOLTAGE REGULATORS FOR AUTOMOTIVE • OUTPUT VOLTAGE OF 5,8.5 AND 10V • OUTPUT CURRENT UP TO 500 mA • NO EXTERNAL COMPONENTS • LOW DROP-OUT VOLTAGE • LOAD DUMP VOLTAGE SURGE PROTECTION • REVERSE VOLTAGE PROTECTION • SHORT CIRCUIT PROTECTION • CURRENT LIMITING • THERMAL SHUTDOWN The L2600 series of three therminal positive regulators is specially designed to stabilize power supplies for car instrumentation in vehicles with 12V battery. They can supply an output current up to 500 mA.
Published: |
