L2605 - LOW DROPOUT VOLTAGE REGULATORS

Datasheet Summary

Description

The L2600 series og three terminal positive regulators is specially designed to stabilize power supplies car instrumentation in vehicles with 12V battery.

Available with output voltages equal to 5V, 8.5 V, 10V, they can supply an output current to 500mA.

STMicroelectronics

📥 Download Datasheet

Datasheet Details

Part number	L2605
Manufacturer	STMicroelectronics
File Size	79.21 KB
Description	LOW DROPOUT VOLTAGE REGULATORS
Datasheet	L2605 Datasheet
Additional preview pages of the L2605 datasheet.

📁 Similar Datasheet

L2605 - POSITIVE VOLTAGE REGULATORS (SGS)
L260 - Converter - Brake - Inverter Module (CBI1) (IXYS Corporation)
L2610 - POSITIVE VOLTAGE REGULATORS (SGS)
L2656 - High power GaAIAs infrared LED (Hamamatsu Corporation)
L2656-03 - High power GaAIAs infrared LED (Hamamatsu Corporation)
L2685 - POSITIVE VOLTAGE REGULATORS (SGS)
L2690 - High power GaAIAs infrared LED (Hamamatsu Corporation)
L2690-02 - High power GaAIAs infrared LED (Hamamatsu Corporation)

Other Datasheets by STMicroelectronics

L2610 - LOW DROPOUT VOLTAGE REGULATORS
L2685 - LOW DROPOUT VOLTAGE REGULATORS

Full PDF Text Transcription

Click to expand full text

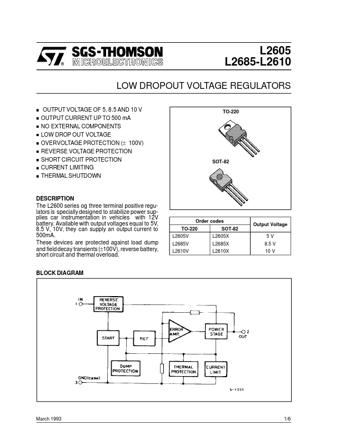

L2605 L2685-L2610 LOW DROPOUT VOLTAGE REGULATORS OUTPUT VOLTAGE OF 5, 8.5 AND 10 V OUTPUT CURRENT UP TO 500 mA NO EXTERNAL COMPONENTS LOW DROP OUT VOLTAGE OVERVOLTAGE PROTECTION (± 100V) REVERSE VOLTAGE PROTECTION SHORT CIRCUIT PROTECTION CURRENT LIMITING THERMAL SHUTDOWN TO-220 SOT-82 DESCRIPTION The L2600 series og three terminal positive regulators is specially designed to stabilize power supplies car instrumentation in vehicles with 12V battery. Available with output voltages equal to 5V, 8.5 V, 10V, they can supply an output current to 500mA. These devices are protected against load dump and field decay transients (±100V), reverse battery, short circuit and thermal overload. BLOCK DIAGRAM Order codes TO-220 L2605V L2685V L2610V SOT-82 L2605X L2685X L2610X Output Voltage 5V 8.
