M730B1, M730 Datasheet - SGS

M730B1 Counter

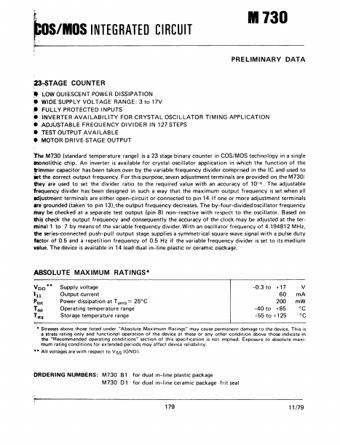

~/MOS INTEGRATED CIRCUIT ~ M730 PRELIMINARY DATA ~-STAGE COUNTER ~ LOW QUIESCENT POWER DISSIPATION WIDE SUPPLY VOLTAGE RANGE: 3 to 17V II FULLY PROTECTED INPUTS .. INVERTER AVAILABILITY FOR CRYSTAL OSCILLATOR TIMING APPLICATION ADJUSTABLE FREQUENCY DIVIDER IN 127 STEPS it TEST OUTPUT AVAILABLE MOTOR DRIVE STAGE OUTPUT the M730 (standard temperature range I is a 23 stage binary counter in COS/MOS technology in a single monolithic chip. An inverter is available for .

M730-SGS.pdf
