BL75R04SM Datasheet - SHANGHAI BELLING

2K-bit EEPROM RFID Label IC

BL75R04SM Features

* Contactless transmission of data and supply energy (no battery needed) ISO15693 compliant Operating frequency: 13.56MHz Operating distance: Up to 1.2m(gate width) Fast data transfer: 26.5 Kbit/s High data integrity: 16 Bit CRC, framing Anti-collision 2K bits available user memory, organized in 64 bl

BL75R04SM General Description

BL75R04SM is a ISO15693 full-compliant IC for intelligent label application like retail as well as baggage and parcel identification in airline business and mail services, access control, ticketing, product authentication, livestock ID, document tracking. The operating frequency of the IC is 13.56MH.

BL75R04SM Datasheet (139.22 KB)

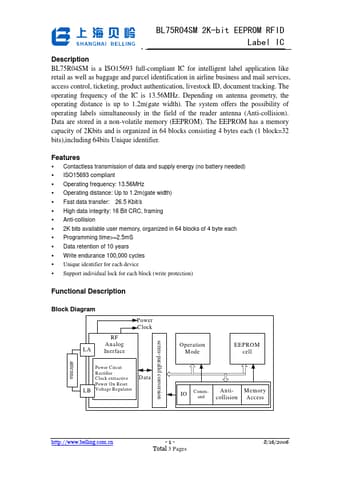

BL75R04SM Datasheet Preview — Preview of BL75R04SM PDF

Datasheet Details

Part number:

BL75R04SM

Manufacturer:

SHANGHAI BELLING

File Size:

139.22 KB

Description:

2k-bit eeprom rfid label ic.
