BL75R06SM - Contactless smart-card

Product Overview

SHANGHAI BELLING

Datasheet Details

Part number	BL75R06SM
Manufacturer	SHANGHAI BELLING
File Size	373.52 KB
Description	Contactless smart-card
Datasheet	BL75R06SM Datasheet
Note	This datasheet PDF includes multiple part numbers: BL75R06SM, BL75R06. Please refer to the document for exact specifications by model.

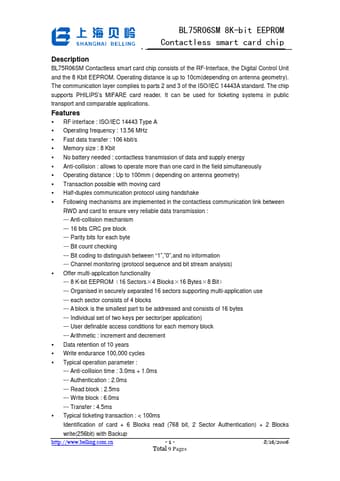

Additional preview pages of the BL75R06SM datasheet.

Product details

Description

BL75R06SM Contactless smart card chip consists of the RF-Interface, the Digital Control Unit and the 8 Kbit EEPROM.Operating distance is up to 10cm(depending on antenna geometry).The communication layer complies to parts 2 and 3 of the ISO/IEC 14443A standard.The chip supports PHILIPS’s MIFARE card reader.It can be used for ticketing systems in public transport and comparable applications.

Features

RF interface : ISO/IEC 14443 Type A Operating frequency : 13.56 MHz Fast data transfer : 106 kbit/s Memory size : 8 Kbit No battery needed : contactless transmission of data and supply energy Anti-collision : allows to operate more than one card in the field simultaneously Operating distance : Up to 100mm ( depending on antenna geometry) Transaction possible with moving card Half-duplex communication protocol using handshake Following mechanisms are implemented in the contactless commu.
