GS7001-84 High Accuracy Linear Li-Lon Battery Charger

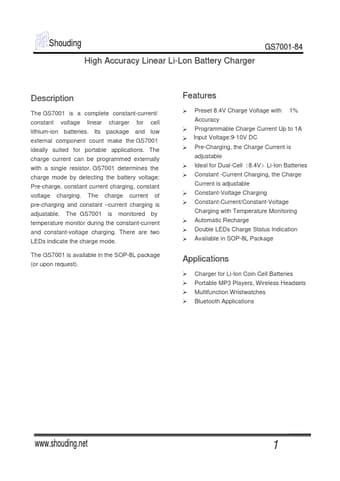

📥 Download Datasheet  Datasheet Preview Page 1

Description

Shouding GS7001-84 High Accuracy Linear Li-Lon Battery Charger .
The GS7001 is a complete constant-current/ constant voltage linear charger for cell lithium-ion batteries.

📥 Download Datasheet

Preview of GS7001-84 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
GS7001-84
Manufacturer
SHOUDING
File Size
1.55 MB
Datasheet
GS7001-84-SHOUDING.pdf
Description
High Accuracy Linear Li-Lon Battery Charger

Features

* Preset 8.4V Charge Voltage with 1% Accuracy Programmable Charge Current Up to 1A Input Voltage:9-10V DC Pre-Charging, the Charge Current is adjustable ( )Ideal for Dual-Cell 8.4V Li-Ion Batt

Applications

* The charge current can be programmed externally with a single resistor. GS7001 determines the charge mode by detecting the battery voltage: Pre-charge, constant current charging, constant voltage charging. The charge current of pre-charging and constant
* current charging is adjustable. The
