GS706SD SURFACE MOUNT SCHOTTKY BARRIER DIODE

S U R F A C E M O U N T, S C H O T T K Y B A R R I E R D I O D E V O LT A G E 4 5 V, C U R R E N T 0 . 0 3 A Package Dimensions The GS706SD is designed for general purpose detection and high speed switching. REF. A A1 A2 D E HE Millimeter Min. Max. 0.80 1.10 0 0.10 0.80 1.00 1.80 2.20 1.15 1.35.

GS706SD_GTM.pdf

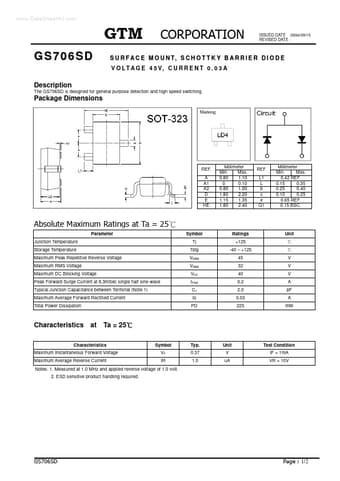

GS706SD Datasheet Preview — Preview of GS706SD PDF

GS706SD Datasheet Preview Page 2

Datasheet Details

Part number:

GS706SD

Manufacturer:

GTM

File Size:

195.36 KB

Description:

Surface mount schottky barrier diode.
