SCT3288 Advanced Baseband Processor

Description

SCT3288 Advanced Baseband Processor D3288/3 June 2023 Advanced Baseband Processor DATASHEET Advance Information .
The SCT3288 is a low power high performance baseband processor supporting dPMR and DMR protocol.

📥 Download Datasheet

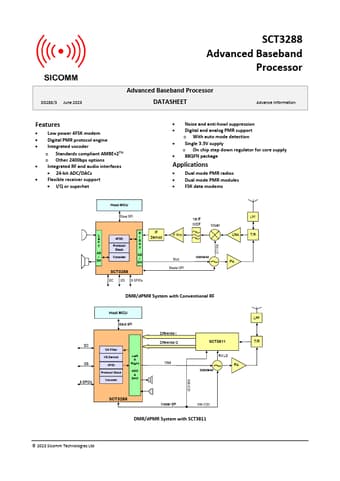

SCT3288 Datasheet Preview — Preview of SCT3288 PDF

Datasheet Specifications

Part number: SCT3288
Manufacturer: SICOMM
File Size: 1.25 MB
Datasheet: SCT3288-SICOMM.pdf
Description: Advanced Baseband Processor

Features

* Low power 4FSK modem
* Digital PMR protocol engine
* Integrated vocoder o Standards compliant AMBE+2 o Other 2400bps options
* Integrated RF and audio interfaces
* 24-bit ADC/DACs
* Flexible receiver support
* I/Q or superhet
* Nois

Applications

* Dual mode PMR radios
* Dual mode PMR modules
* FSK data modems Host MCU Slave SPI 1st IF LPF M CF M ixer L E F T 4FSK Protocol Stack R IF I Dem od G H T IF Amp AD / DA Vocoder AD / DA Mod CMX940 RX LO LNA T/R PA SCT3288 Master SPI I2C I2S 8 GPIOs
