SGN5210 - 2.4 GHz RF Transceiver

Datasheet Summary

Description

The Signia SGN5210 IC is a low-cost, fully integrated CMOS radio frequency (RF) transceiver, optimized for applications in the globally available 2.4~2.5 GHz ISM band.

It contains transmit, receive, VCO and PLL functions, including VCO resonator, thus minimizing the need for external components.

Features

  • digitally adjustable output power, ranging from approx. +2 to -32 dBm. Nominal mark and space deviation is ±167 kHz. IQ modulation yields transmit data rates from DC up to 333 kbps (1 Mbps max. ). Low in-band spurious signals, and internal Gaussian filtering of the transmit data, ease regulatory compliance. The superhetrodyne receiver is comprised of LNA, active image-reject down-converter, and “low-IF” amplifier/limiter chain.

📥 Download Datasheet

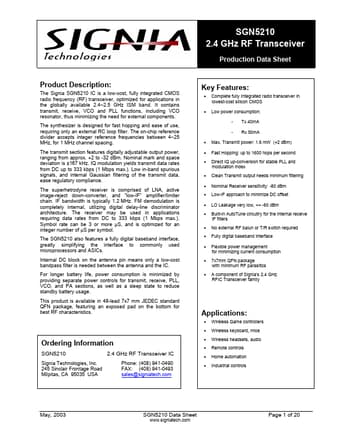

Datasheet preview – SGN5210

Datasheet Details

Part number SGN5210
Manufacturer SIGNIA
File Size 336.62 KB
Description 2.4 GHz RF Transceiver
Datasheet download datasheet SGN5210 Datasheet
Additional preview pages of the SGN5210 datasheet.

📁 Similar Datasheet

Other Datasheets by SIGNIA

Full PDF Text Transcription

Click to expand full text
Product Description: The Signia SGN5210 IC is a low-cost, fully integrated CMOS radio frequency (RF) transceiver, optimized for applications in the globally available 2.4~2.5 GHz ISM band. It contains transmit, receive, VCO and PLL functions, including VCO resonator, thus minimizing the need for external components. The synthesizer is designed for fast hopping and ease of use, requiring only an external RC loop filter. The on-chip reference divider accepts integer reference frequencies between 4~25 MHz, for 1 MHz channel spacing. The transmit section features digitally adjustable output power, ranging from approx. +2 to -32 dBm. Nominal mark and space deviation is ±167 kHz. IQ modulation yields transmit data rates from DC up to 333 kbps (1 Mbps max.).
