SH79F329 - Enhanced 8051 microprocessor

Datasheet Summary

Features

  • 8-bit MCU based on 8051 compatible pipeline instructions ÿ Flash ROM: 32K bytes ÿ RAM: internal 256 bytes, external 1024 bytes ÿ Operating voltage: VVPACK/VBAT = 4.5V - 25V ÿ Oscillator: - Internal RC oscillator: 64KHz - Multiplied to 1MHz, 2MHz, 4MHz, 8MHz ÿ 13 CMOS bidirectional I/O pins ÿ I/O builtin pull-up resistor ÿ 2 open-drain structure I/O pins ÿ 2 8-bit timers T0, T1 ÿ Interrupt sources: - Timer 0, Timer 1 External interrupts INT1-2 - CADC, VADC, SMBus, SCI, AFE ÿ SMBus interface (mast.

📥 Download Datasheet

Datasheet preview – SH79F329

Datasheet Details

Part number SH79F329
Manufacturer SINO WEALTH
File Size 9.27 MB
Description Enhanced 8051 microprocessor
Datasheet download datasheet SH79F329 Datasheet
Additional preview pages of the SH79F329 datasheet.

📁 Similar Datasheet

  • SH702 - SILICON GATE ENHANCEMENT MODE RF POWER VDMOS TRANSISTOR (Polyfet RF Devices)
  • SH7020 - RISC Engine Manual (Hitachi)
  • SH7020 - SuperH microcomputer Hardware Manual (Renesas)
  • SH7021 - RISC Engine Manual (Hitachi)
  • SH7021 - SuperH microcomputer Hardware Manual (Renesas)
  • SH703 - SILICON GATE ENHANCEMENT MODE RF POWER VDMOS TRANSISTOR (Polyfet RF Devices)
  • SH7040 - (SH7040 - SH7055) 32-Bit Single-Chip RISC Microprocessor (Renesas Technology)
  • SH7041 - (SH7040 - SH7055) 32-Bit Single-Chip RISC Microprocessor (Renesas Technology)
  • SH7042 - (SH7040 - SH7055) 32-Bit Single-Chip RISC Microprocessor (Renesas Technology)
  • SH7043 - SH7043 Series FP-144 User System Interface Cable (Hitachi Semiconductor)
Other Datasheets by SINO WEALTH

Full PDF Text Transcription

Click to expand full text

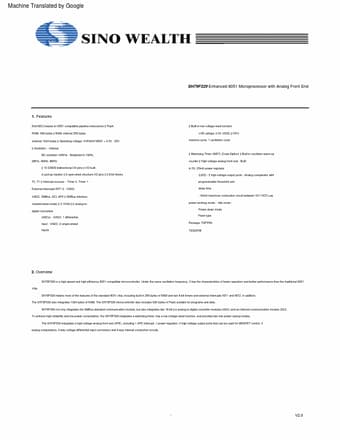

Machine Translated by Google 1. Features 8-bit MCU based on 8051 compatible pipeline instructions ÿ Flash ROM: 32K bytes ÿ RAM: internal 256 bytes, external 1024 bytes ÿ Operating voltage: VVPACK/VBAT = 4.5V - 25V ÿ Oscillator: - Internal RC oscillator: 64KHz - Multiplied to 1MHz, 2MHz, 4MHz, 8MHz ÿ 13 CMOS bidirectional I/O pins ÿ I/O builtin pull-up resistor ÿ 2 open-drain structure I/O pins ÿ 2 8-bit timers T0, T1 ÿ Interrupt sources: - Timer 0, Timer 1 External interrupts INT1-2 - CADC, VADC, SMBus, SCI, AFE ÿ SMBus interface (master/slave mode) ÿ 2 16-bit ÿ-ÿ analog-todigital converters (ADCs) - CADC: 1 differential input - VADC: 2 single-ended inputs SH79F329 Enhanced 8051 Microprocessor with Analog Front End ÿ Built-in low voltage reset function LVR voltage: 2.
