SP903 Datasheet - SIPAT

SP903 DECT RF Filters

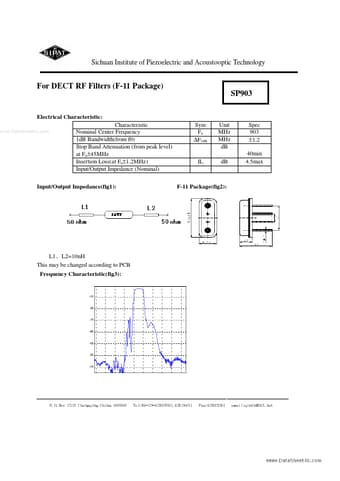

Sichuan Institute of Piezoelectric and Acoustooptic Technology For DECT RF Filters (F-11 Package) SP903 Electrical Characteristic: www.DataSheet4U.com Characteristic Nominal Center Frequency 1dB Bandwidth(from f0) Stop Band Attenuation (from peak level) at F0±45MHz Insertion Loss(at F0±1.2MHz) Input/Output Impedance (Nominal) Sym F0 ∆F1dB Unit MHz MHz dB dB Spec 903 ±1.2 40min 4.5max IL Input/Output Impedance(fig1): F-11 Package(fig2): L1 L2=10nH This may be changed according to PCB Fre.

SP903 Datasheet (54.91 KB)

SP903 Datasheet Preview — Preview of SP903 PDF

Datasheet Details

Part number:

SP903

Manufacturer:

SIPAT

File Size:

54.91 KB

Description:

Dect rf filters.
