SP927 - DECT RF Filters

📥 Download Datasheet

Datasheet preview – SP927

Datasheet Details

Part number SP927
Manufacturer SIPAT
File Size 64.48 KB
Description DECT RF Filters
Datasheet download datasheet SP927 Datasheet
Additional preview pages of the SP927 datasheet.

📁 Similar Datasheet

  • SP9270 - SP9270 (Si-Power)
  • SP92701 - Sub-Nanosecond ECL Line Receiver and Driver (Plessey Semiconductors)
  • SP9210 - 128-RGB x 160 Color OLED Column / Row Driver (ETC)
  • SP916 - Service Manual (ETC)
  • SP9316 - 16Bit CMOS Multiplying DAC (Sipex)
  • SP940 - RF SAW Filter (CETC)
  • SP94308 - 8-BIT VIDEO SYSTEM ADC (Zarlink Semiconductor)
  • SP946 - AC Solid State Relay (Solid State Optronic)
  • SP9500 - 12-Bit / Voltage Output D/A Converter (Sipex)
  • SP9501 - 12-Bit / Voltage Output D/A Converter (Sipex)
Other Datasheets by SIPAT

Full PDF Text Transcription

Click to expand full text

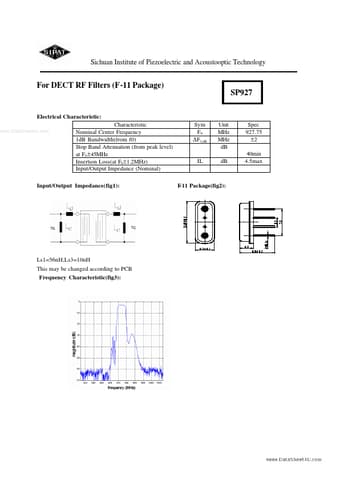

Sichuan Institute of Piezoelectric and Acoustooptic Technology For DECT RF Filters (F-11 Package) SP927 Electrical Characteristic: www.DataSheet4U.com Characteristic Nominal Center Frequency 1dB Bandwidth(from f0) Stop Band Attenuation (from peak level) at F0 ±45MHz Insertion Loss(at F0 ±1.2MHz) Input/Output Impedance (Nominal) Sym F0 ∆ F1dB Unit MHz MHz dB dB Spec 927.75 ±2 40min 4.5max IL Input/Output Impedance(fig1): F -11 Package(fig2): Ls1=56nH;Ls3=10nH This may be changed according to PCB Frequency Characteristic(fig3): __________________________________________________________________________________________________ P.O.Box 2513 Chongqing China 400060 -23 Tel:86 -62805392,62919651 Fax:62805284 email:qinth@26 3.
