MBR10100FC - Power Schottky Rectifier

Features

  • s -Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 -High Junction Temperature Capability -Low forward voltage, high current capability -High surge capacity -Low power loss, high efficiency -ESD performance human body mode > 8 KV.

📥 Download Datasheet

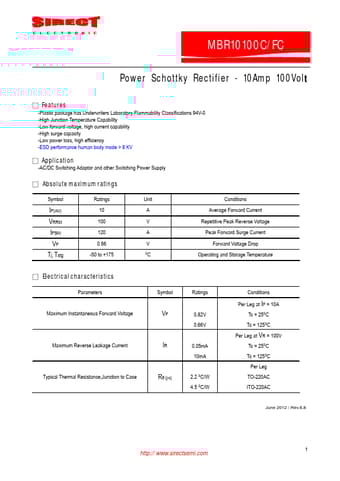

Datasheet preview – MBR10100FC

Datasheet Details

Part number MBR10100FC
Manufacturer SIRECT
File Size 119.43 KB
Description Power Schottky Rectifier
Datasheet download datasheet MBR10100FC Datasheet
Additional preview pages of the MBR10100FC datasheet.

📁 Similar Datasheet

  • MBR10100FCT - Schottky Barrier Rectifier (INCHANGE)
  • MBR10100FCT - (MBR1020FCT - MBR10100FCT) Schottky Barrier Rectifier (MCC)
  • MBR10100FCT - 10 AMPERES SCHOTTKY BARRIER RECTIFIERS (Pan Jit)
  • MBR10100FCT - DUAL SCHOTTKY BARRIER RECTIFIER (Power Silicon)
  • MBR10100FCT - Schottky Barrier Rectifier (Formosa MS)
  • MBR10100FCT - Schottky Barrier Rectifiers (Global Intelligent Electronics)
  • MBR10100FCT - 10.0AMP. SCHOTTKY BARRIER RECTIFIERS (YFD)
  • MBR10100FCT - 10A SCHOTTKY BARRIERRECTIFIER (YS)
  • MBR10100F - Schottky Barrier Rectifier (SeCoS)
  • MBR10100F - SCHOTTKY BARRIER RECTIFIER (GOOD ELECTRONIC)
Other Datasheets by SIRECT

Full PDF Text Transcription

Click to expand full text
ELECTRONIC MBR10100C/FC Power Schottky Rectifier - 10Amp 100Volt □ Features -Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 -High Junction Temperature Capability -Low forward voltage, high current capability -High surge capacity -Low power loss, high efficiency -ESD performance human body mode > 8 KV □ Application -AC/DC Switching Adaptor and other Switching Power Supply □ Absolute maximum ratings Symbol IF(AV) VRRM IFSM VF Tj, Tstg Ratings 10 100 120 0.
