SIT14503Q Datasheet - SIT

low dropout linear regulator

SIT14503Q Features

* Input voltage range: 3V to 40V

* Enable Pin (EN) withstand voltage: 40V

* Ultra-low quiescent current

SIT14503Q General Description

The SIT14503Q series is a low dropout linear regulator (LDO) with ultra-low quiescent current and a wide input voltage range of 3V to 40V. SIT14503Q provides fixed output of 3.3V and 5V or adjustable outputs from 0.65V to 24V, providing load currents up to 300mA. The quiescent current of the SIT145.

SIT14503Q Datasheet (1.06 MB)

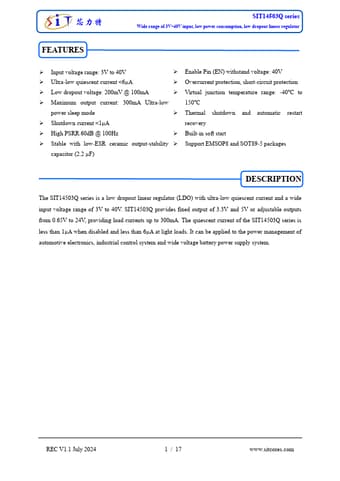

SIT14503Q Datasheet Preview — Preview of SIT14503Q PDF

Datasheet Details

Part number:

SIT14503Q

Manufacturer:

SIT

File Size:

1.06 MB

Description:

Low dropout linear regulator.
