SIT1463Q - Automotive Signal Improvement Capable CAN FD Transceiver

📥 Download Datasheet

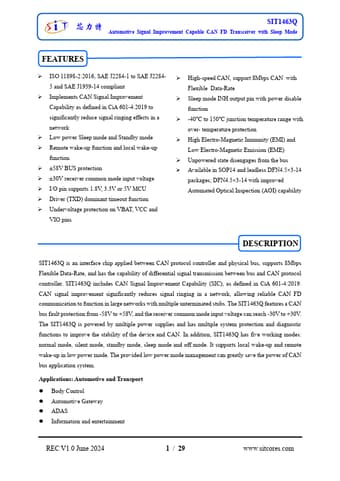

SIT1463Q Datasheet Preview — Preview of SIT1463Q PDF

Datasheet Details

Part number: SIT1463Q
Manufacturer: SIT
File Size: 1.24 MB
Datasheet: SIT1463Q-SIT.pdf
Description: Automotive Signal Improvement Capable CAN FD Transceiver

SIT1463Q Product details

Description

SIT1463Q is an interface chip applied between CAN protocol controller and physical bus, supports 8Mbps Flexible Data-Rate, and has the capability of differential signal transmission between bus and CAN protocol controller.

Features

ISO 11898-2:2016, SAE J2284-1 to SAE J22845 and SAE J1939-14 compliant.
Implements CAN Signal Improvement Capability as defined in CiA 601-4:2019 to significantly reduce signal ringing effects in a network.
Low power Sleep mode and Standby mode.
Remote wake-up function and local wake-up function.
±58V BUS protection.
±30V receiver common mode input voltage.
I/O pin supports 1.8V, 3.3V or 5V MCU.
Driver (TXD) dominant timeo.
