SIT3088E

14Mbps Half-Duplex RS485/RS422 Transceiver

SIT3088E Features

* OUTLINE

* 3.0V~5.5V Wide Power Range, Half-Duplex

* ESD Protection for RS-485 I/O Pins ±15kV, Human Body Model

* Bus Fault Tolerance and Withstand Voltage Reach ±15V

* 1/8 Unit Load,Allow Up to 256 Transceivers on the Bus

* Driver Short-Circuit Output Protec

SIT3088E General Description

Provide green and environmentally friendly lead-free package SIT3088E is a RS-485 transceiver with 3.0V~5.5V wide power supply, bus port ESD protection capacity of over 15kV HBM, bus withstand voltage range of ±15V, half duplex, low power consumption, and fully meet the requirements of TIA / EIA-4.

SIT3088E Datasheet (965.69 KB)

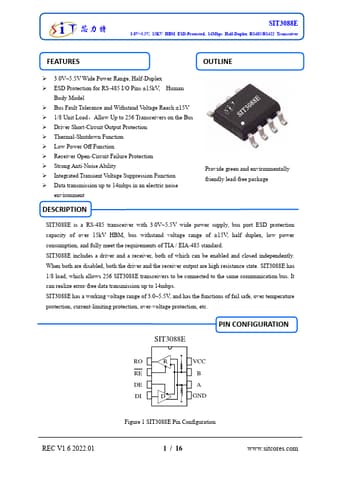

Preview of SIT3088E PDF

Datasheet Details

Part number:

SIT3088E

Manufacturer:

SIT

File Size:

965.69 KB

Description:

14mbps half-duplex rs485/rs422 transceiver.
