SF-2012 - TUNING FORK UNIT

Product Overview

SIWARD

Part number	SF-2012
Manufacturer	SIWARD
File Size	107.87 KB
Description	TUNING FORK UNIT
Datasheet	SF-2012 Datasheet

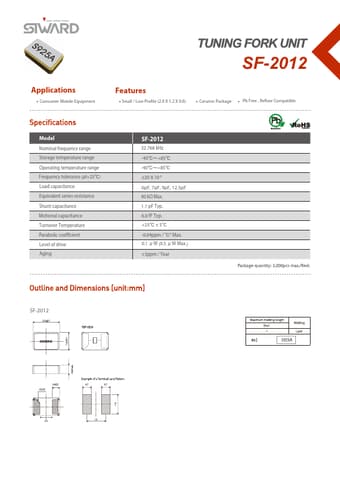

Additional preview pages of the SF-2012 datasheet.

Small / Low Profile (2.0 X 1.2 X 0.6) Ceramic Package Pb Free , Reflow Compatible Model Nominal frequency range Storage temperature range Operating temperature range Frequency tolerance (at+25℃) Load capacitance Equivalent series resistance Shunt capacitance Motional capacitance Turnover Temperature Parabolic coefficient Level of drive Aging SF-2012 32.768 kHz -40℃～+85℃ -40℃～+85℃ ±20Ｘ10-6 6pF, 7pF, 9pF, 12.5pF 80 kΩ Max. 1.1 pF Typ. 6.0 fF Typ. +25℃ ± 5℃ -0.04ppm / ℃2 Max. 0.1 μW (0.5 μW Max.
