SF-3215 - TUNING FORK UNIT

Product Overview

SIWARD

Part number	SF-3215
Manufacturer	SIWARD
File Size	139.15 KB
Description	TUNING FORK UNIT
Datasheet	SF-3215 Datasheet

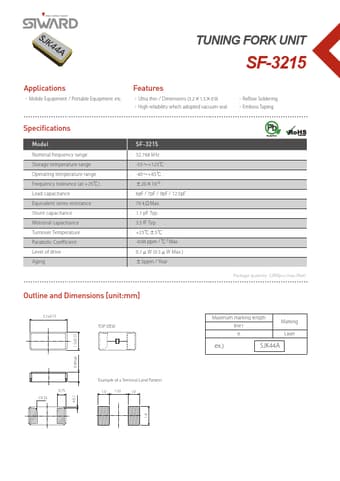

Additional preview pages of the SF-3215 datasheet.

Ultra thin / Dimensions (3.2 1.5 0.9) High reliability which adopted vacuum seal Re ow Soldering Emboss Taping Specifications Model Nominal frequency range Storage temperature range Operating temperature range Frequency tolerance (at +25 ) Load capacitance Equivalent series resistance Shunt capacitance Motional capacitance Turnover Temperature Parabolic Coefficient Level of drive Aging SF-3215 32.768 kHz -55 +125 -40 +85 20 10-6 6pF / 7pF / 9pF / 12.5pF 70 k Max. 1.1 pF Typ. 3.5 fF Typ. +25 5.
