RM008 PA Module

www.DataSheet4U.com RM008 PA Module for Dual-band GSM900 and DCS1800 Applications The RM008 is a dual-band Power Amplifier Module (PAM) designed in a compact form factor for Class 4 GSM900 and Class 1 DCS1800 operation. The PAM consists of two Gallium Arsenide (GaAs) Heterojunction Bipolar Transistor (HBT) power amplifiers and internal components that match the RF input and output ports to 50 ohms, which reduces the number of external components for a dual-band design. Optimized for lithium-ion.

RM008 Features

* High efficiency GSM 50% DCS 45% Input and output matching 50 ohms internal Small outline 9.1 mm x 11.61 mm Low profile 1.64 mm

* Applications

* Class 4 GSM900 and Class 1 DCS1800 dual-band cellular handsets Functional Block Diagram DCS IN HBT DCS O

RM008 Datasheet (548.11 KB)

Preview of RM008 PDF

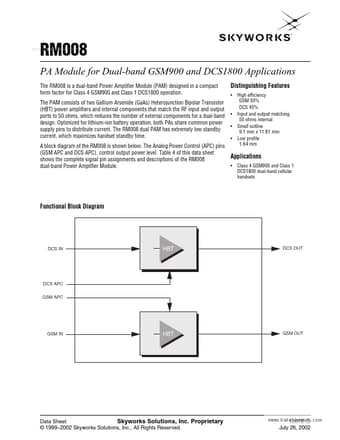

RM008 Datasheet Preview Page 2 RM008 Datasheet Preview Page 3

Datasheet Details

Part number:

RM008

Manufacturer:

SKYWORKS

File Size:

548.11 KB

Description:

Pa module.
