RM009 Datasheet - SKYWORKS

Power Amplifier Module

RM009 Features

* form factor for Class 4 GSM900 and Class 1 DCS1800 cellular handsets.

* High efficiency GSM 54% DCS 45% Input/output matching 50 Ω internal Small outline 9.1 mm x 11.6 mm Low profile 1.50 mm ±10% Low APC current 60 µA The module consists a GSM900 PA block and a DCS1800 PA block, matching ci

RM009 General Description

www.DataSheet4U.com Package Dimensions and Pin Descriptions Figure 2 is a mechanical diagram of the pad layout for the 16-pin leadless, RM009 Power Amplifier module. Figure 3 shows the device pin configuration and the pin numbering convention, which starts with pin 1 in the upper left and increm.

RM009 Datasheet (340.55 KB)

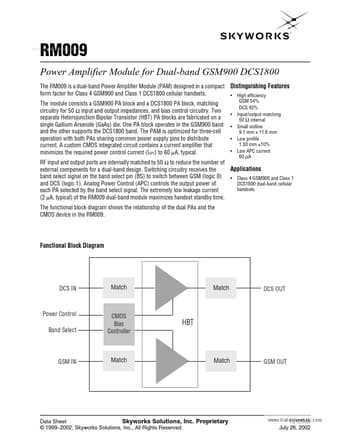

RM009 Datasheet Preview — Preview of RM009 PDF

Datasheet Details

Part number:

RM009

Manufacturer:

SKYWORKS

File Size:

340.55 KB

Description:

Power amplifier module.
www.DataSheet4U.com RM009 Power Amplifier Module for Dual-band GSM900 DCS1800 The RM009 is a dual-band Power Amplifier Module (PAM) designed in a com.
