SC63C0316 - AUDIO CONTROL SYSTEM

SC63C0316 Description

SC63C0316 AUDIO CONTROL SYSTEM WITH BUILT-IN 4-BIT MCU .
The SC63C0316 single-chip CMOS microcontroller is designed for very high performance.

SC63C0316 Features

* Memory
* 512-nibble RAM
* 16K-byte ROM I/O Pins
* Input only: 4 pins
* Output only: 28 pins
* I/O: 24 pins http://www. DataSheet4U. net/ ORDERING INFORMATION Device SC63C0316 A/D Converter
* 4-channels with 8-bit resolution Bit Sequential Carrier Buffer
* Support 16-bit se

SC63C0316 Applications

* especially those requiring DTS support. Up to 56 pins of the 80-pin QFP package can be dedicated to I/O. Eight vectored interrupts provide fast response to internal and external events. In addition, the SC63C0316's advanced CMOS technology ensures low power consumption and a wide operating voltage

📥 Download Datasheet

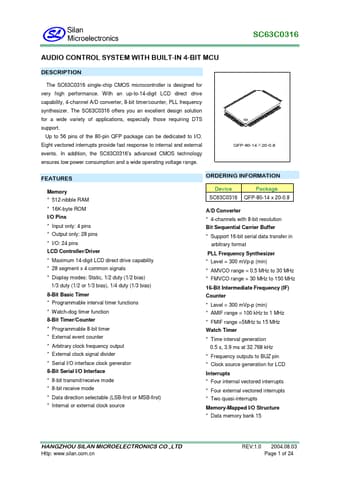

Preview of SC63C0316 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC63C0316
Manufacturer
SL
File Size
364.70 KB
Datasheet
SC63C0316_SL.pdf
Description
AUDIO CONTROL SYSTEM
