MBRB2535CTL, MBRB2535CTL-SMC SCHOTTKY RECTIFIER

📥 Download Datasheet  Datasheet Preview Page 1

Description

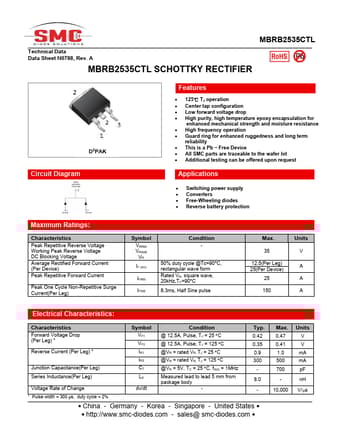

MBRB2535CTL Technical Data Data Sheet N0788, Rev.A MBRB2535CTL SCHOTTKY RECTIFIER D2PAK Circuit Diagram .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRB2535CTL, MBRB2535CTL-SMC. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MBRB2535CTL, MBRB2535CTL-SMC
Manufacturer
SMC-DIODE
File Size
284.55 KB
Datasheet
MBRB2535CTL-SMC-DIODE.pdf
Description
SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBRB2535CTL, MBRB2535CTL-SMC.
Please refer to the document for exact specifications by model.

Features

* 125℃ TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current (Per Device) Peak Repetitive Forward Current
