10BQ040 - SCHOTTKY RECTIFIER

10BQ040 Description

10BQ040 Technical Data Data Sheet N0644, Rev.A 10BQ040 SCHOTTKY RECTIFIER .

10BQ040 Features

* SMB
* Small foot print, surface moutable
* Low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot
* Additional testing can be

10BQ040 Applications

* Disk Drives
* Switching power supply
* Redundant power subsystems
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Battery Charging Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Avera

📥 Download Datasheet

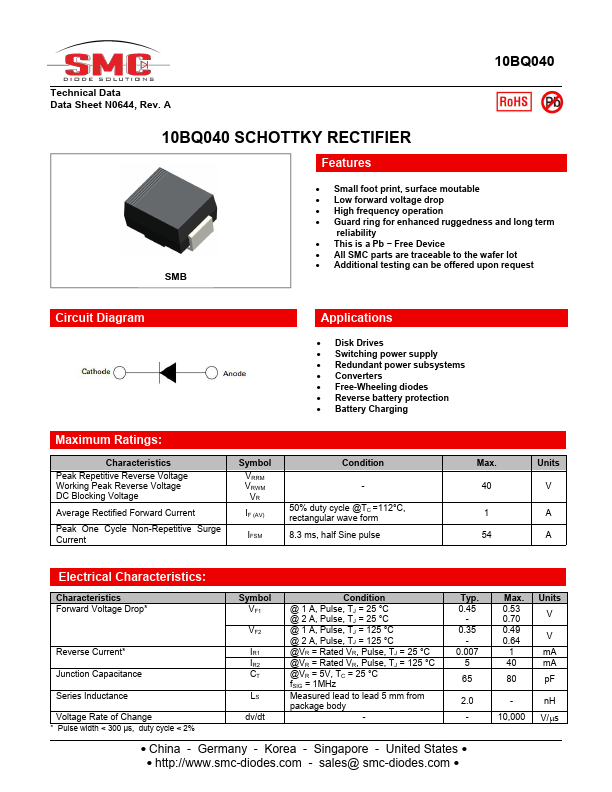

Preview of 10BQ040 PDF

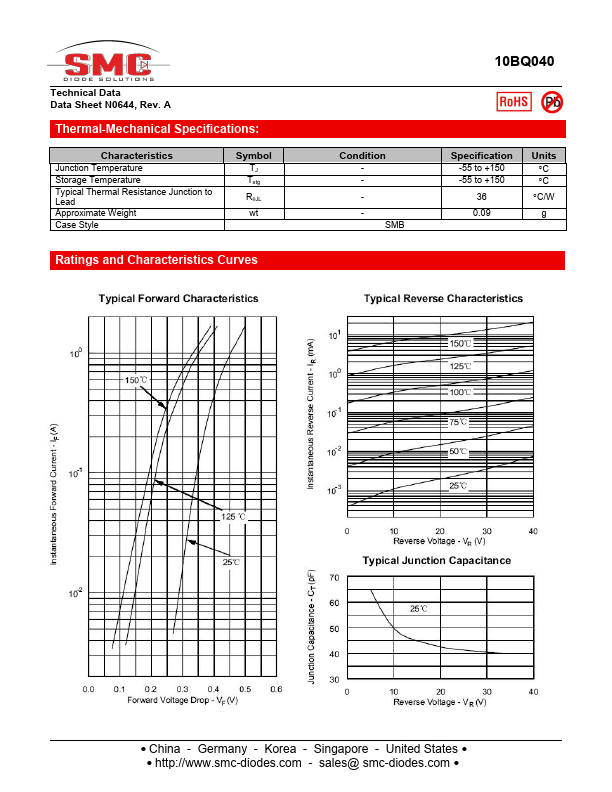

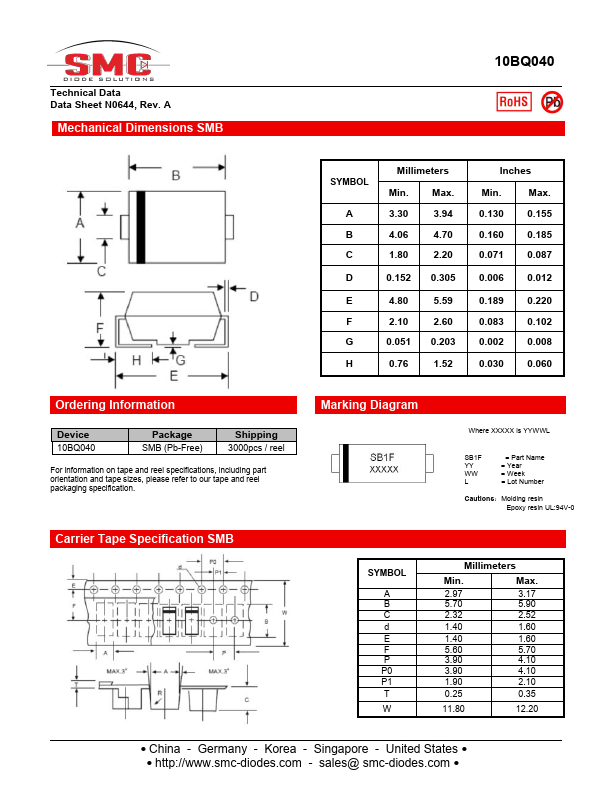

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
10BQ040
Manufacturer
SMC Diode
File Size
279.72 KB
Datasheet
10BQ040-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
