1N4001FL - General Purpose Plastic Rectifier

Datasheet Summary

Features

  • Low forward voltage drop.
  • Low leakage current.
  • High forward surge capability.
  • Solder dip 260 °C, 40 s.
  • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
  • This is a Halogen Free Device.
  • All SMC parts are traceable to the wafer lot.
  • Additional testing can be offered upon request Circuit Diagram Mechanical Data.
  • Case: SOD-123FL molded plastic.
  • Terminals: Plated leads solderable per MIL-STD-750, Method 2026.
  • Polarity: Color band.

📥 Download Datasheet

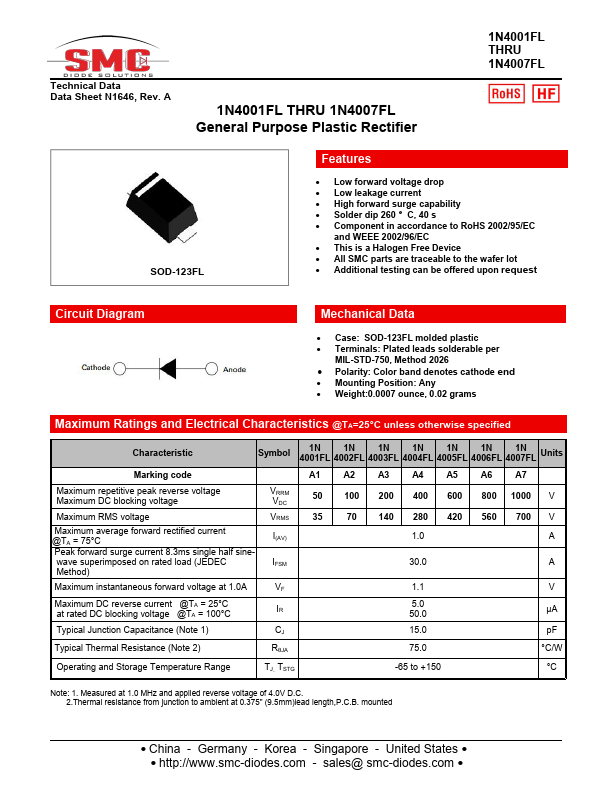

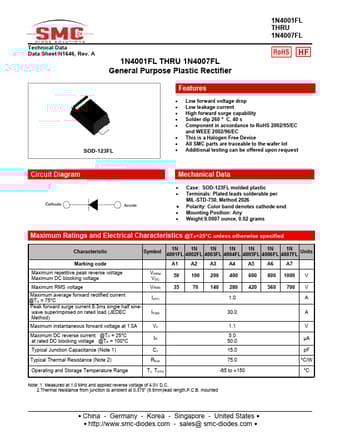

Datasheet preview – 1N4001FL

Datasheet Details

Part number 1N4001FL
Manufacturer SMC Diode
File Size 314.64 KB
Description General Purpose Plastic Rectifier
Datasheet download datasheet 1N4001FL Datasheet

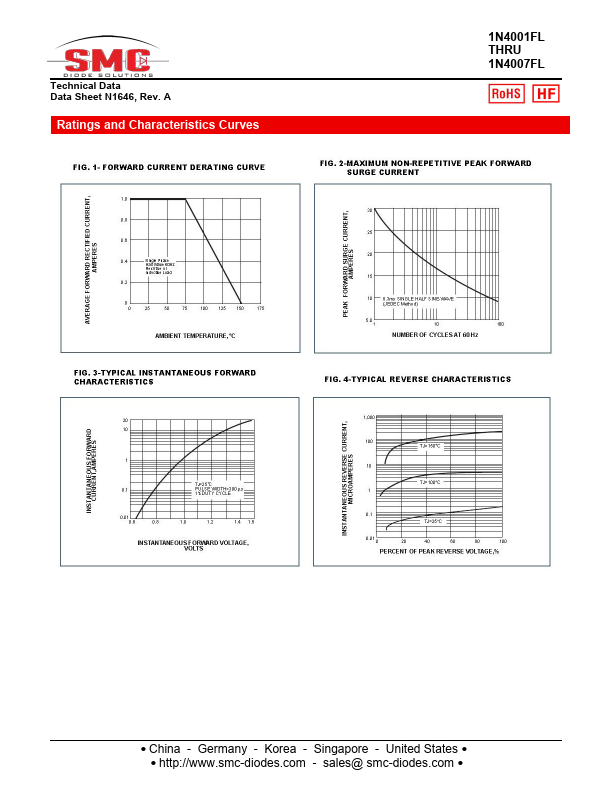

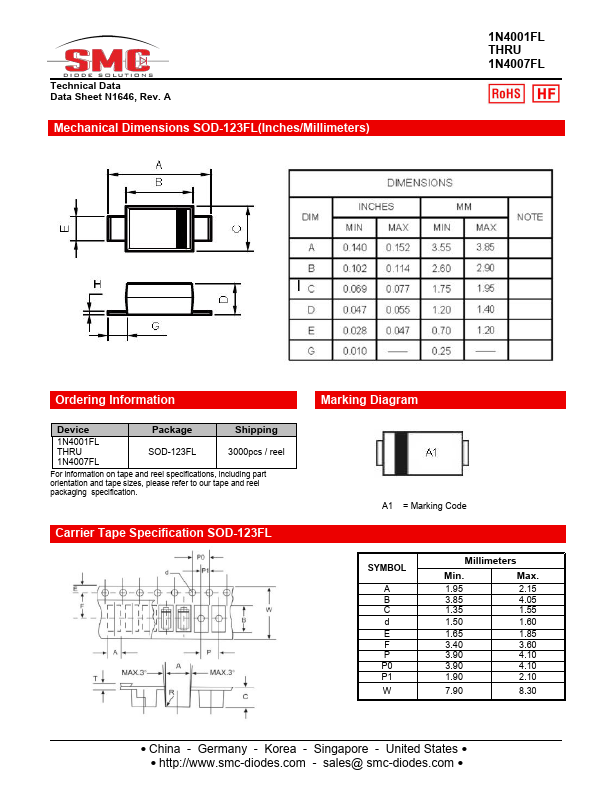

Additional preview pages of the 1N4001FL datasheet.

📁 Similar Datasheet

  • 1N4001F - Rectifier Diodes (Kexin)
  • 1N4001FH - General Purpose Silion Rectifiers (Kexin)
  • 1N4001 - SILICON RECTIFIER DIODES (EIC)
  • 1N4001 - 1.0A STANDARD DIODE (WON-TOP)
  • 1N4001 - 1.0A RECTIFIER (Vishay Siliconix)
  • 1N4001 - Axial Lead Standard Recovery Rectifiers (ON Semiconductor)
  • 1N4001 - General Purpose Rectifiers (Fairchild Semiconductor)
  • 1N4001 - General Purpose Plastic Rectifiers (LRC)
  • 1N4001 - 1.0A RECTIFIER (Diodes)
  • 1N4001 - General Purpose Plastic Rectifiers (New Jersey Semi-Conductor)
Other Datasheets by SMC Diode
  • 1N4001 - 1.0 SILICON RECTIFIER
  • 1N4001G - 1.0A GLASS PASSIVATED RECTIFIER
  • 1N4001S - GENERAL PURPOSE SILICON RECTIFIER
  • 1N4002 - 1.0 SILICON RECTIFIER
  • 1N4002FL - General Purpose Plastic Rectifier
  • 1N4002G - 1.0A GLASS PASSIVATED RECTIFIER
  • 1N4002S - GENERAL PURPOSE SILICON RECTIFIER
  • 1N4003 - 1.0 SILICON RECTIFIER

Full PDF Text Transcription

Click to expand full text
Technical Data Data Sheet N1646, Rev. A 1N4001FL THRU 1N4007FL General Purpose Plastic Rectifier 1N4001FL THRU 1N4007FL SOD-123FL Features  Low forward voltage drop  Low leakage current  High forward surge capability  Solder dip 260 °C, 40 s  Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC  This is a Halogen Free Device  All SMC parts are traceable to the wafer lot  Additional testing can be offered upon request Circuit Diagram Mechanical Data  Case: SOD-123FL molded plastic  Terminals: Plated leads solderable per MIL-STD-750, Method 2026  Polarity: Color band denotes cathode end  Mounting Position: Any  Weight:0.0007 ounce, 0.
