50WQ04FN SCHOTTKY RECTIFIER

SMC Diode

50WQ04FN Description

Technical Data Data Sheet N0708, Rev.A 50WQ04FN SCHOTTKY RECTIFIER 50WQ04FN DPAK .

50WQ04FN Features

* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* “-A” is an AEC-Q101 qualified device
* Terminals

50WQ04FN Applications

* Disk drives
* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Battery charging Maximum Ratings(at 25°C unless otherwise specified) Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage A

📥 Download Datasheet

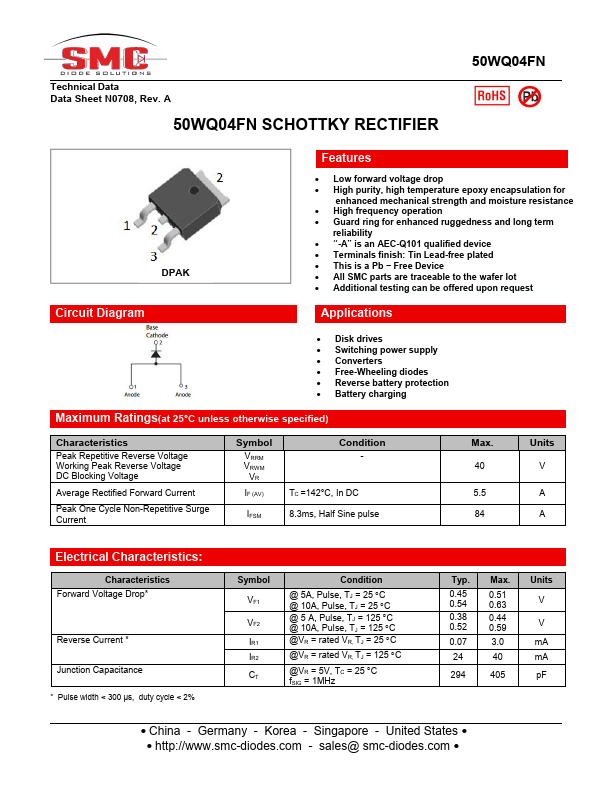

50WQ04FN Datasheet Preview — Preview of 50WQ04FN PDF

Datasheet Details

Part number: 50WQ04FN
Manufacturer: SMC Diode
File Size: 322.56 KB
Datasheet: 50WQ04FN-SMCDiode.pdf
Description: SCHOTTKY RECTIFIER
