50WQ06FN SCHOTTKY RECTIFIER

50WQ06FN Description

Technical Data Data Sheet N0709, Rev.A 50WQ06FN SCHOTTKY RECTIFIER 50WQ06FN DPAK .

50WQ06FN Features

* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* “-A” is an AEC-Q101 qualified device
* Terminals

50WQ06FN Applications

* Disk drives
* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Battery charging Maximum Ratings@TC=25°C unless otherwise specified Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Av

📥 Download Datasheet

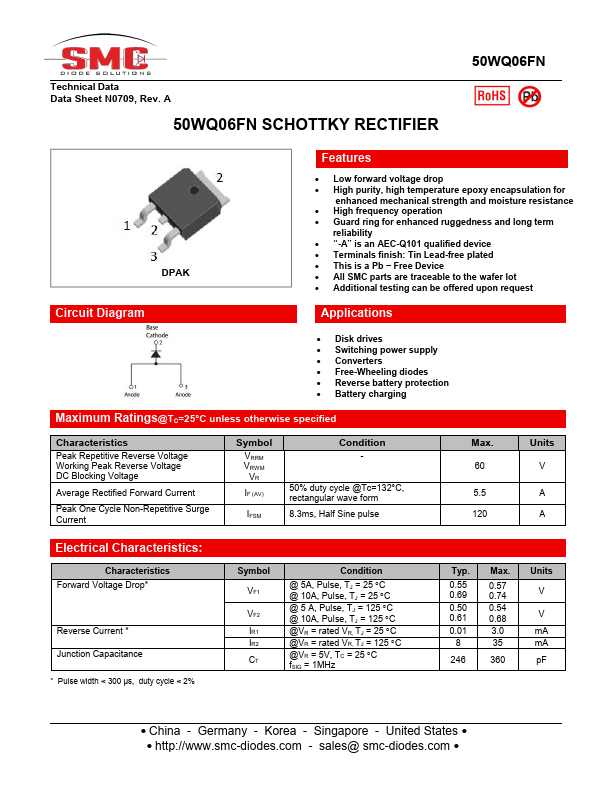

Preview of 50WQ06FN PDF

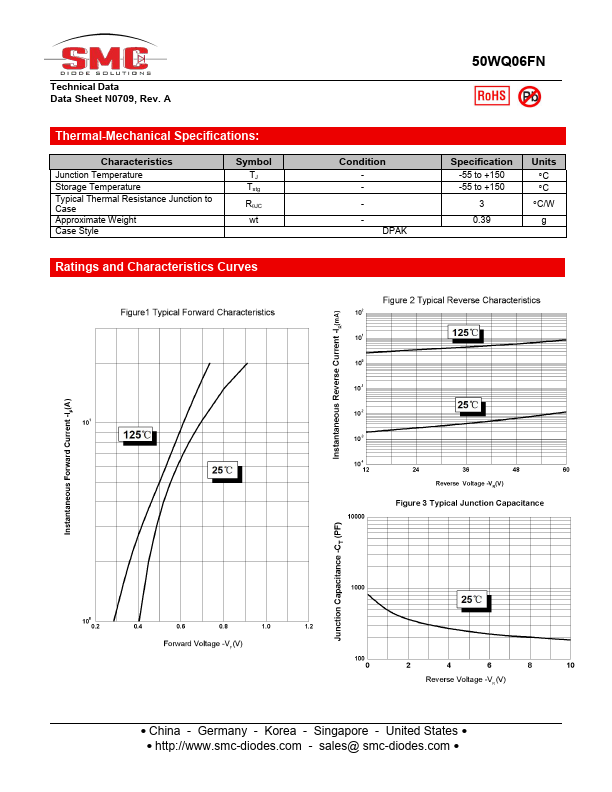

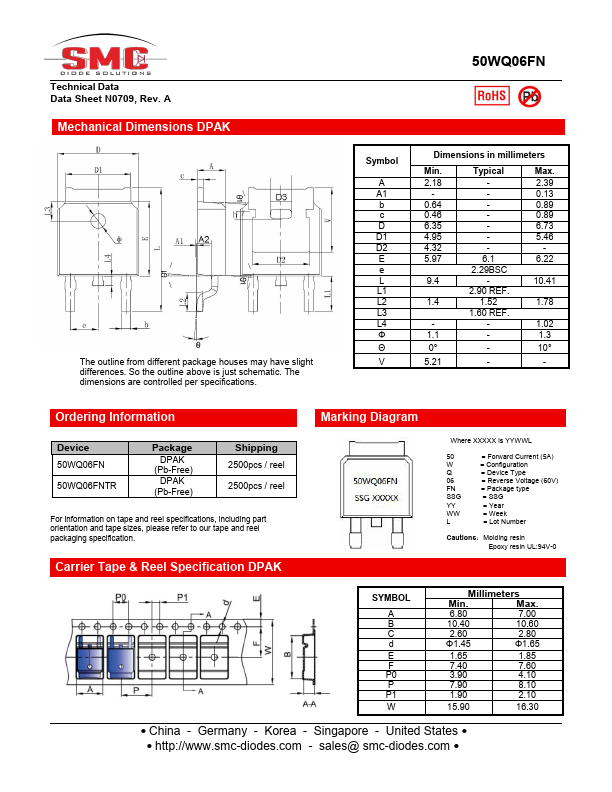

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
50WQ06FN
Manufacturer
SMC Diode
File Size
325.30 KB
Datasheet
50WQ06FN-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
