50WQ10FN SCHOTTKY RECTIFIER

50WQ10FN Description

50WQ10FN Technical Data Data Sheet N0613, Rev.B 50WQ10FN SCHOTTKY RECTIFIER DPAK .

50WQ10FN Features

* 150℃ TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

50WQ10FN Applications

* Disk drives
* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Battery charging Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Pe

📥 Download Datasheet

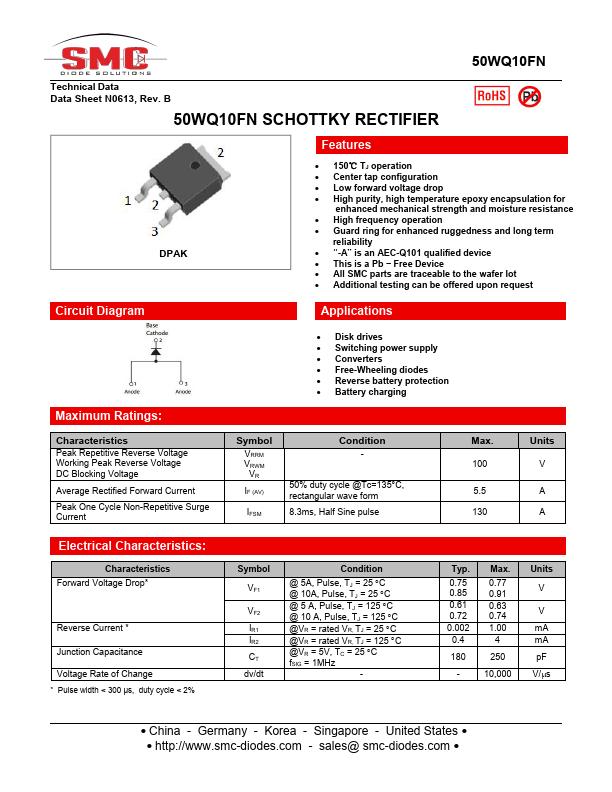

Preview of 50WQ10FN PDF

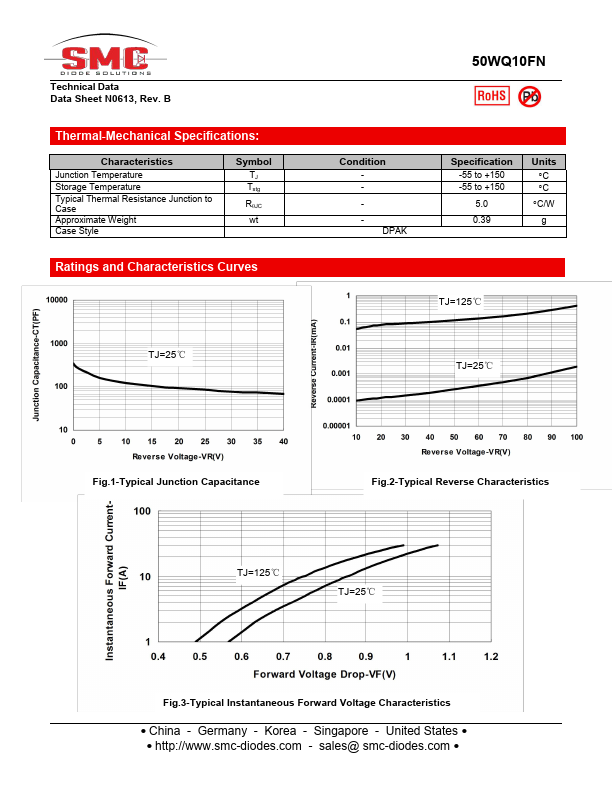

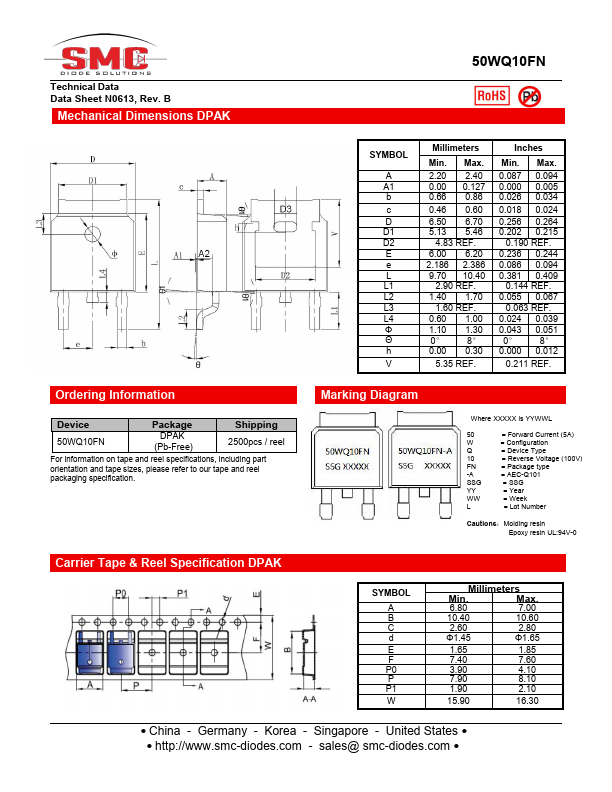

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
50WQ10FN
Manufacturer
SMC Diode
File Size
839.29 KB
Datasheet
50WQ10FN-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
