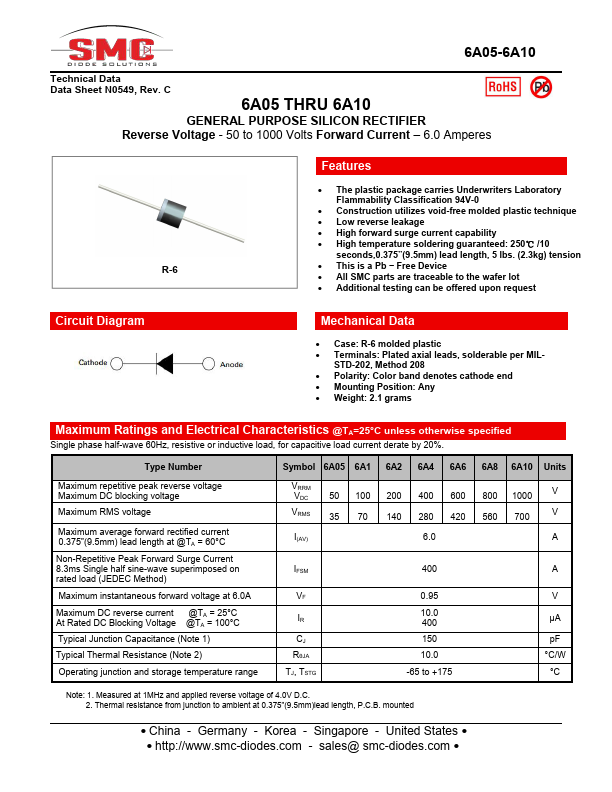

6A05 - GENERAL PURPOSE SILICON RECTIFIER

SMC Diode

Datasheet Details

Part number	6A05
Manufacturer	SMC Diode
File Size	333.01 KB
Description	GENERAL PURPOSE SILICON RECTIFIER
Datasheet	6A05-SMCDiode.pdf

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0.
Construction utilizes void-free molded plastic technique.
Low reverse leakage.
High forward surge current capability.
High temperature soldering guaranteed: 250℃ /10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension R-6.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Ci.
