6A8 GENERAL PURPOSE SILICON RECTIFIER

SMC Diode

Description

6A05-6A10 Technical Data Data Sheet N0549, Rev.C 6A05 THRU 6A10 GENERAL PURPOSE SILICON RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current .

📥 Download Datasheet

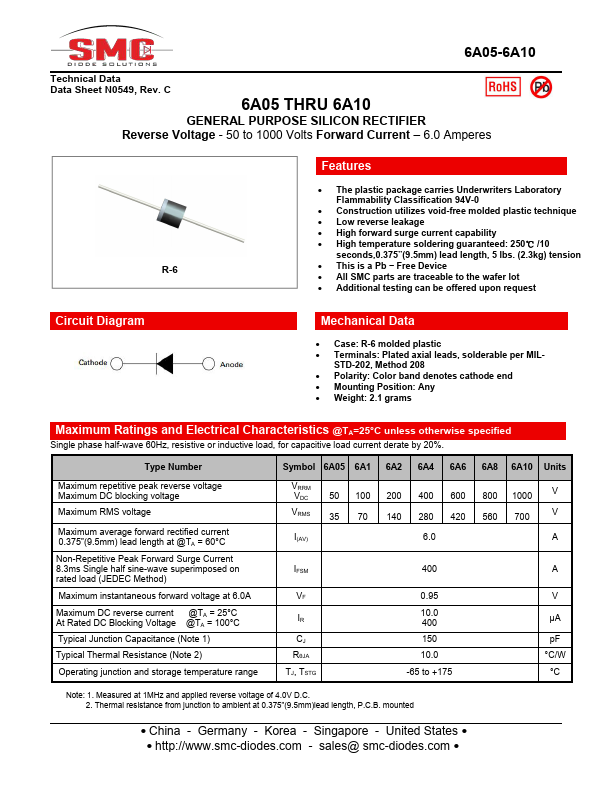

6A8 Datasheet Preview — Preview of 6A8 PDF

Datasheet Specifications

Part number: 6A8
Manufacturer: SMC Diode
File Size: 330.23 KB
Datasheet: 6A8-SMCDiode.pdf
Description: GENERAL PURPOSE SILICON RECTIFIER

Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
* Construction utilizes void-free molded plastic technique
* Low reverse leakage
* High forward surge current capability
* High temperature soldering guaranteed: 250℃ /10 seconds,0.375”

Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co. , Ltd be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is
