6A8G GLASS PASSIVATED SILICON RECTIFIER

📥 Download Datasheet  Datasheet Preview Page 1

Description

6A05G-6A10G Technical Data Data Sheet N0550, Rev.B 6A05G THRU 6A10G GLASS PASSIVATED SILICON RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Cur.

📥 Download Datasheet

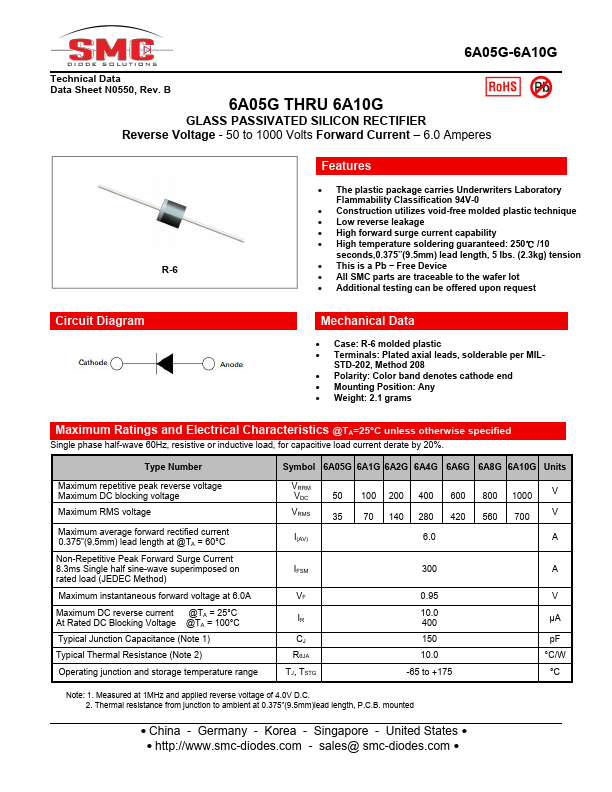

Preview of 6A8G PDF

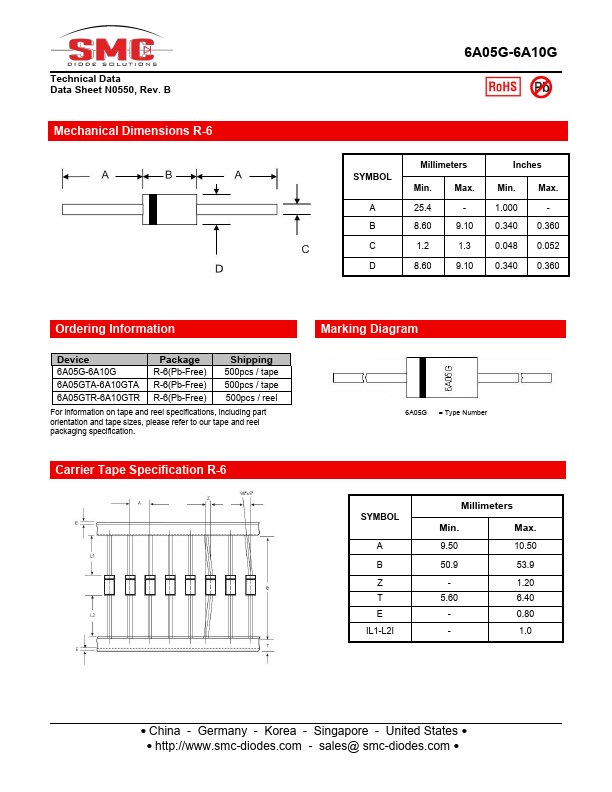

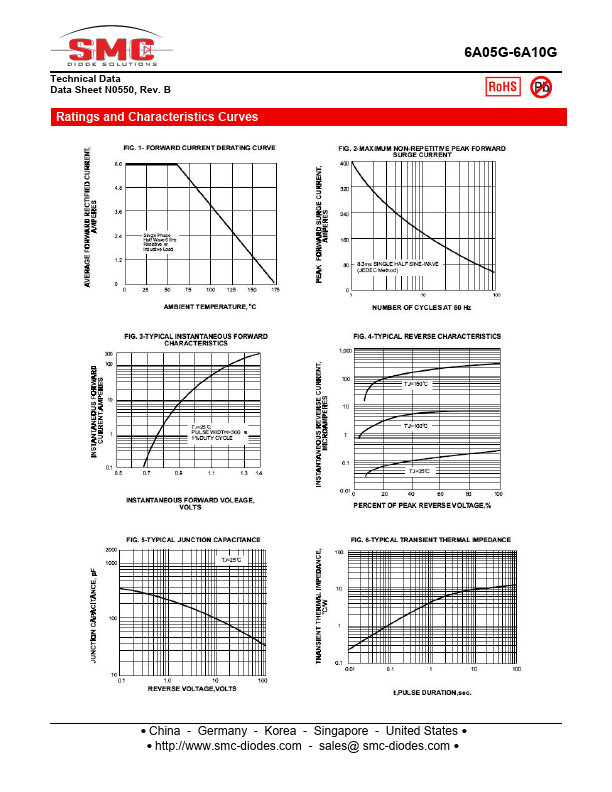

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
6A8G
Manufacturer
SMC Diode
File Size
338.72 KB
Datasheet
6A8G-SMCDiode.pdf
Description
GLASS PASSIVATED SILICON RECTIFIER

Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
* Construction utilizes void-free molded plastic technique
* Low reverse leakage
* High forward surge current capability
* High temperature soldering guaranteed: 250℃ /10 seconds,0.375”

Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) und
