89CNQ150SM, 89CNQ135 - SCHOTTKY RECTIFIER

SMC Diode

The 89CNQ150SM by SMC Diode is a SCHOTTKY RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

89CNQ150SM SCHOTTKY RECTIFIER by SMC Diode - Datasheet Preview — Official preview page of the 89CNQ150SM SCHOTTKY RECTIFIER datasheet (SMC Diode).

Datasheet Details

Part number	89CNQ150SM, 89CNQ135
Manufacturer	SMC Diode
File Size	401.46 KB
Description	SCHOTTKY RECTIFIER
Datasheet	89CNQ135-SMCDiode.pdf
Note	This datasheet PDF includes multiple part numbers: 89CNQ150SM, 89CNQ135. Please refer to the document for exact specifications by model.

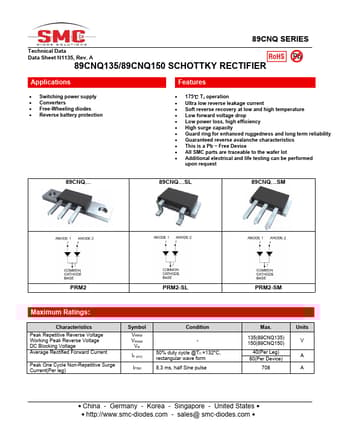

Additional preview pages of the 89CNQ150SM datasheet.

89CNQ150SM Product details

Features

Switching power supply.
Converters.
Free-Wheeling diodes.
Reverse battery protection.
175℃ TJ operation.
Ultra low reverse leakage current.
Soft reverse recovery at low and high temperature.
Low forward voltage drop.
Low power loss, high efficiency.
High surge capacity.
Guard ring for enhanced ruggedness and long term reliability.
Guaranteed reverse avalanche characteristics.
This is a Pb.
Free Device.
All SMC part.
