89C5122 - AT89C5122

Description

AT8xC5122 is a high-performance CMOS derivative of the 80C51 8-bit microcontrollers optimized for USB keyboard with smart card reader applications.

Features

  • 80C51 Core :.
  • 6 Clocks per Instruction.
  • Speed up to 16 MHz.
  • 768 Bytes RAM.
  • AT83C5122: 32 Kbytes ROM.
  • AT83C5123: 30 Kbytes ROM.
  • AT85C5122: 32 Kbytes Code RAM and 32 Kbytes ROM.
  • AT89C5122 : 32 Kbytes Flash.
  • AT85EC5122, AT83EC5123, AT83EC5122: Additional 512 Bytes EEPROM (AT24C04).
  • Multi-protocol Smart Card Interface.
  • Certified According to ISO7816, EMV2000, GIE-CB and WHQM Standards.
  • Asynch.

📥 Download Datasheet

Datasheet preview – 89C5122

📁 Similar Datasheet

  • 89C51 - 80C51 8-bit microcontroller family 4K/8K/16K/32K Flash (NXP)
  • 89C51 - 80C51 8-bit microcontroller family 4K/8K/16K/32K Flash (NXP)
  • 89C51 - 8 Bit Microcontroller with 4 Kbytes Flash (atmel)
  • 89C516RD - ST89C516RD (ETC)
  • 89C51RB2 - 80C51 8-bit Flash microcontroller family 16KB/32KB/64KB ISP/IAP Flash with 512B/512B/1KB RAM (NXP)
  • 89C51RC2 - 80C51 8-bit Flash microcontroller family 16KB/32KB/64KB ISP/IAP Flash with 512B/512B/1KB RAM (NXP)
  • 89C51RD2 - 80C51 8-bit Flash microcontroller family 16KB/32KB/64KB ISP/IAP Flash with 512B/512B/1KB RAM (NXP)
  • 89C51RE2 - AT89C51RE2 (ATMEL)
  • 89C52 - 80C51 8-bit microcontroller family 4K/8K/16K/32K Flash (NXP)
  • 89C52 - 80C51 8-bit microcontroller family 4K/8K/16K/32K Flash (NXP)
Other Datasheets by ATMEL Corporation

Full PDF Text Transcription

Click to expand full text

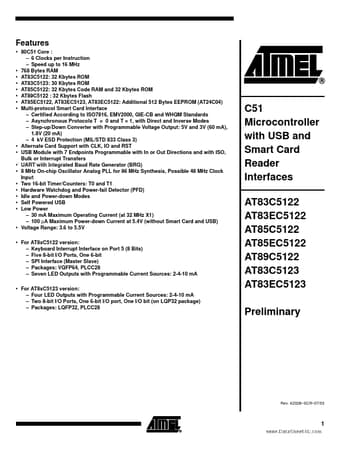

Features • 80C51 Core : – 6 Clocks per Instruction – Speed up to 16 MHz • 768 Bytes RAM • AT83C5122: 32 Kbytes ROM • AT83C5123: 30 Kbytes ROM • AT85C5122: 32 Kbytes Code RAM and 32 Kbytes ROM • AT89C5122 : 32 Kbytes Flash • AT85EC5122, AT83EC5123, AT83EC5122: Additional 512 Bytes EEPROM (AT24C04) • Multi-protocol Smart Card Interface – Certified According to ISO7816, EMV2000, GIE-CB and WHQM Standards – Asynchronous Protocols T = 0 and T = 1, with Direct and Inverse Modes – Step-up/Down Converter with Programmable Voltage Output: 5V and 3V (60 mA), 1.8V (20 mA) – 4 kV ESD Protection (MIL/STD 833 Class 3) • Alternate Card Support with CLK, IO and RST • USB Module with 7 Endpoints Programmable with In or Out Directions and with ISO, Bulk or Interrupt Transfers www.DataSheet4U.
