FR1G, FR1A - 1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER

SMC Diode

📥 Download Datasheet

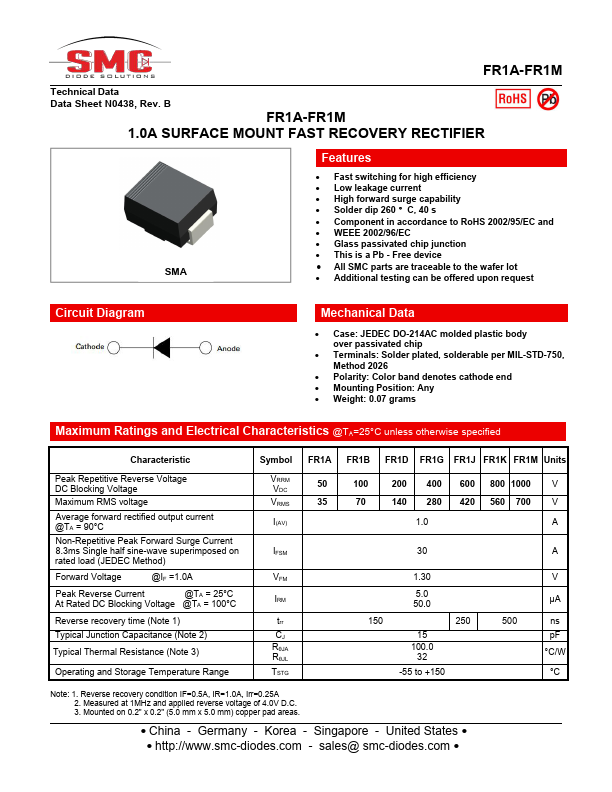

FR1G Datasheet Preview — This datasheet PDF includes multiple part numbers: FR1G, FR1A. Please refer to the document for exact specifications by model.

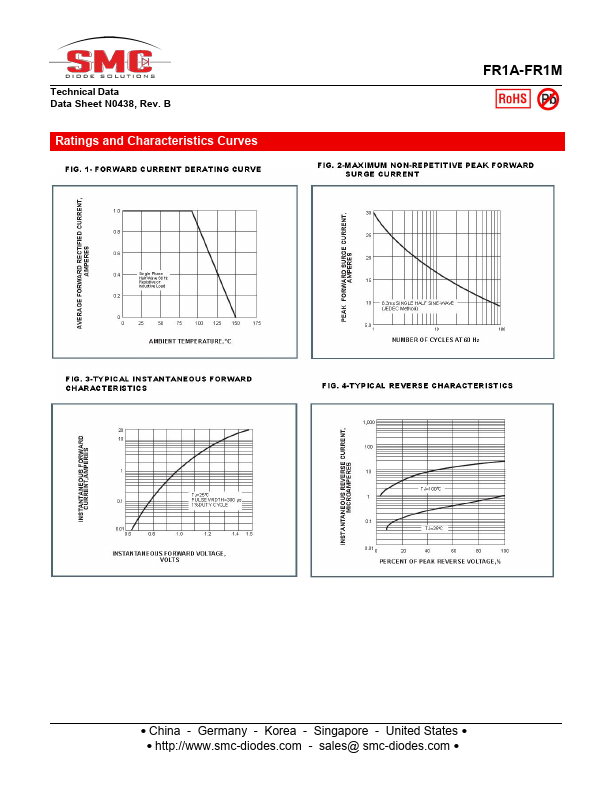

datasheet Preview Page 2

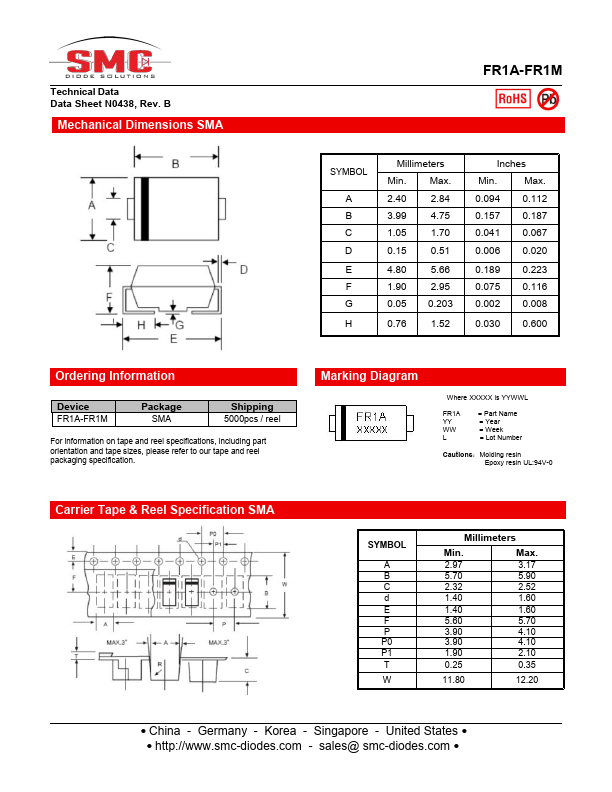

datasheet Preview Page 3

Datasheet Details

Part number	FR1G, FR1A
Manufacturer	SMC Diode
File Size	317.81 KB
Description	1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER
Datasheet	FR1A-SMCDiode.pdf
Note	This datasheet PDF includes multiple part numbers: FR1G, FR1A. Please refer to the document for exact specifications by model.

FR1G Product details

Features

Fast switching for high efficiency.
Low leakage current.
High forward surge capability.
Solder dip 260 °C, 40 s.
Component in accordance to RoHS 2002/95/EC and.
WEEE 2002/96/EC.
Glass passivated chip junction.
This is a Pb - Free device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: JEDEC DO-214AC molded plastic body over passivated chip.
Terminals:.
