MBR560S - SCHOTTKY RECTIFIER

SMC Diode

📥 Download Datasheet

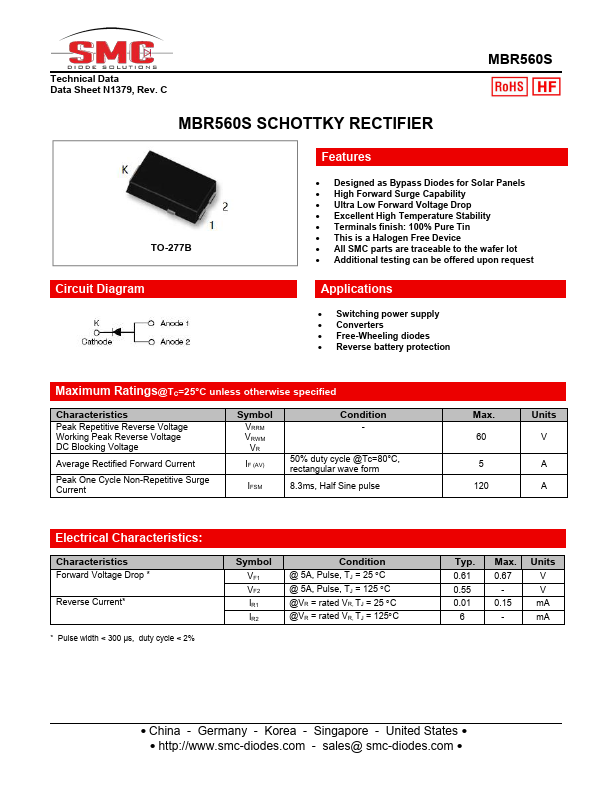

MBR560S Datasheet Preview — Preview of MBR560S PDF

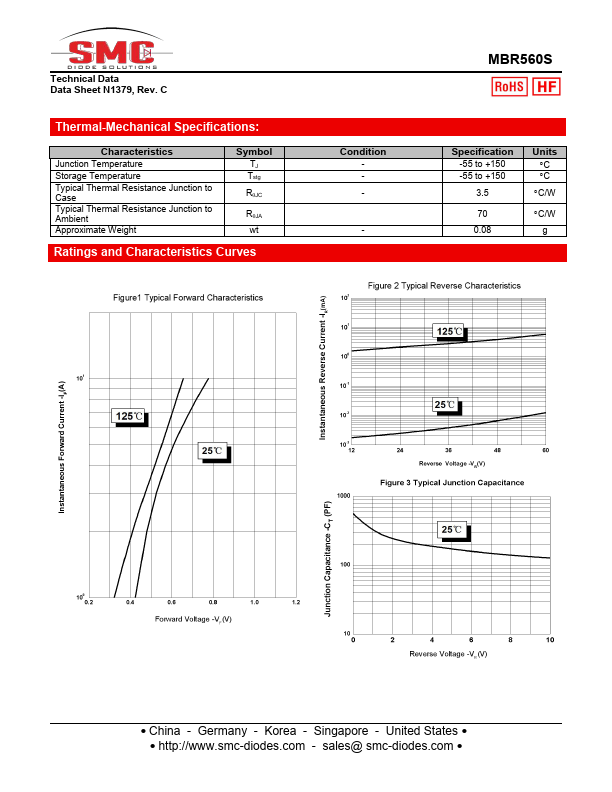

datasheet Preview Page 2

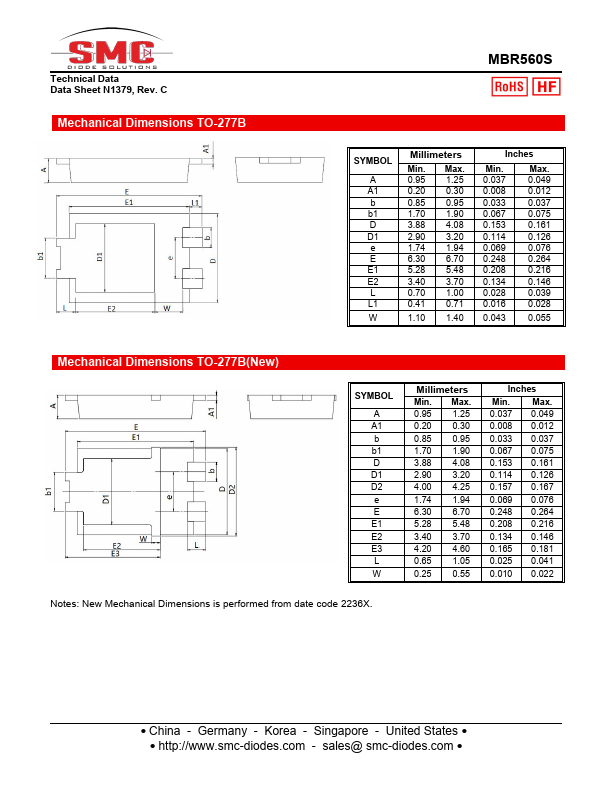

datasheet Preview Page 3

Datasheet Details

Part number: MBR560S
Manufacturer: SMC Diode
File Size: 345.33 KB
Datasheet: MBR560S-SMCDiode.pdf
Description: SCHOTTKY RECTIFIER

MBR560S Product details

Features

Designed as Bypass Diodes for Solar Panels.
High Forward Surge Capability.
Ultra Low Forward Voltage Drop.
Excellent High Temperature Stability.
Terminals finish: 100% Pure Tin.
This is a Halogen Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request.
