MBR560F Schottky Diodes

Yangzhou Yangjie

Description

MBR560F RoHS COMPLIANT Schottky Diodes .

📥 Download Datasheet

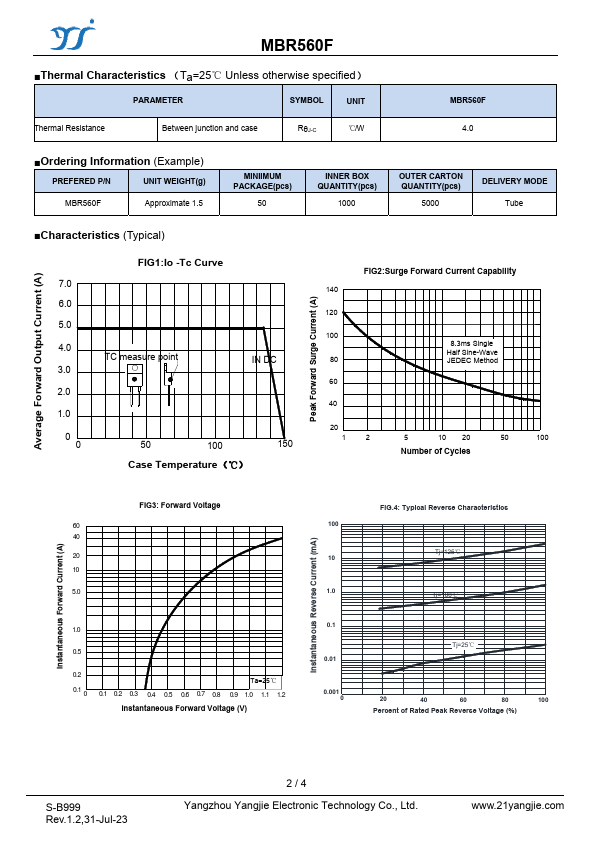

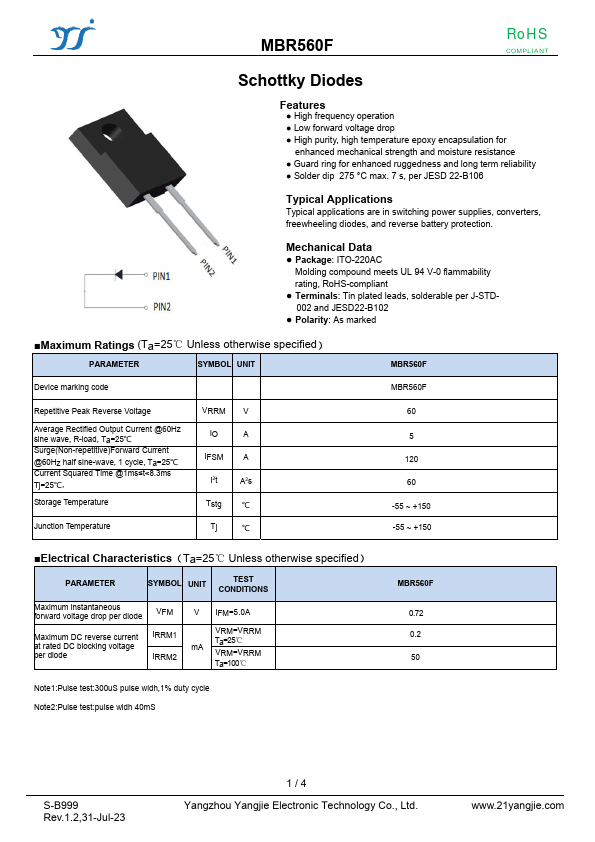

MBR560F Datasheet Preview — Preview of MBR560F PDF

Datasheet Specifications

Part number: MBR560F
Manufacturer: Yangzhou Yangjie
File Size: 220.21 KB
Datasheet: MBR560F-YangzhouYangjie.pdf
Description: Schottky Diodes

Features

* High frequency operation
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Solder dip 275 °C max. 7 s, per JESD 22-B106 Typica

Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data

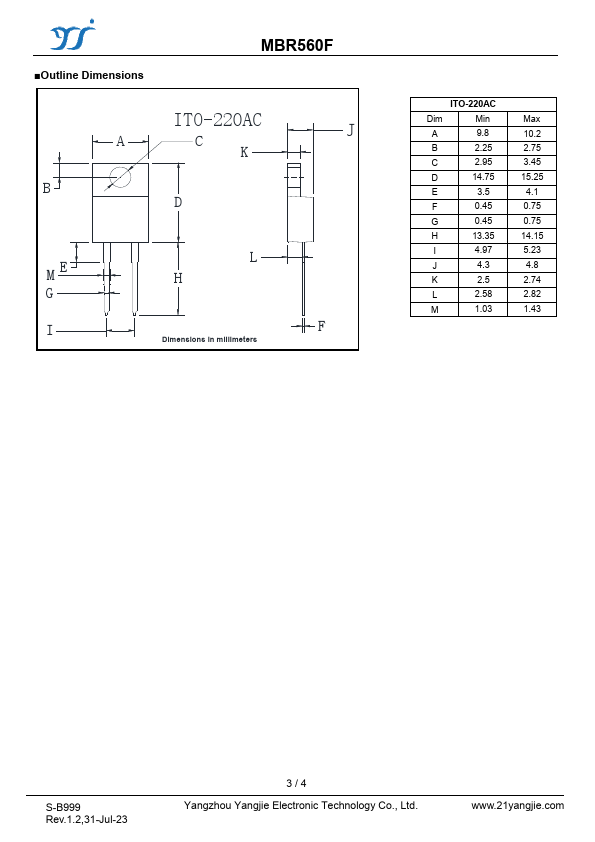

* Package: ITO-220AC Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD- 002 and JESD2
