MBR1035CT, MBR1020CT Schottky Diodes

MBR1035CT Description

MBR1020CT THRU MBR1060CT  RoHS COMPLIANT   Schottky Diodes .

MBR1035CT Features

* High frequency operation
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Solder dip 275 °C max. 7 s, per JESD 22-B106 Typica

MBR1035CT Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-220AB Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD- 002 and JESD22

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR1035CT, MBR1020CT. Please refer to the document for exact specifications by model.

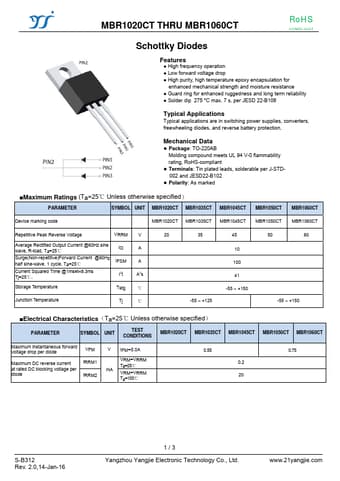

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR1035CT, MBR1020CT
Manufacturer
Yangzhou Yangjie
File Size
134.03 KB
Datasheet
MBR1020CT-YangzhouYangjie.pdf
Description
Schottky Diodes
Note
This datasheet PDF includes multiple part numbers: MBR1035CT, MBR1020CT.
Please refer to the document for exact specifications by model.
