MBRB2090CT SCHOTTKY RECTIFIER

MBRB2090CT Description

Technical Data Data Sheet N0791, Rev.C MBRB2090CT MBRB20100CT MBRB2090CT MBRB20100CT SCHOTTKY RECTIFIER D2PAK Circuit Diagram .

MBRB2090CT Features

* 150℃ TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

MBRB2090CT Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetitive Surge Current(P

📥 Download Datasheet

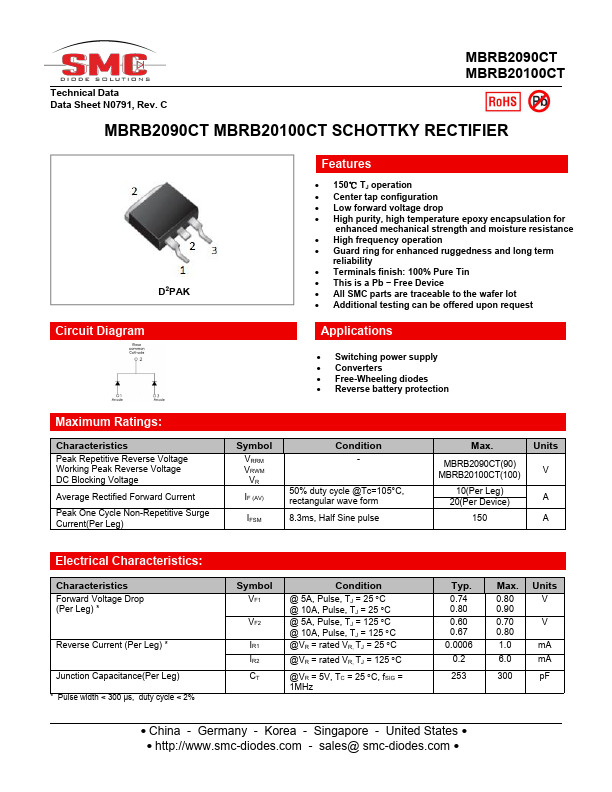

Preview of MBRB2090CT PDF

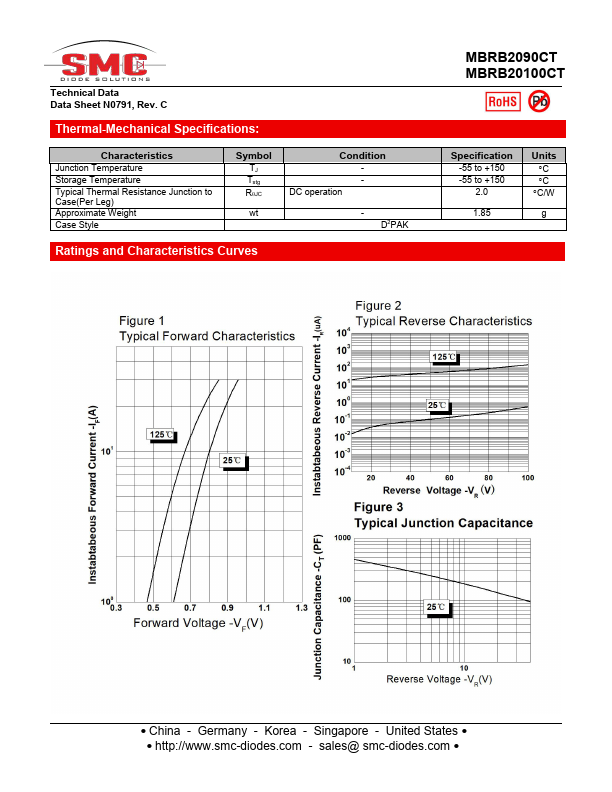

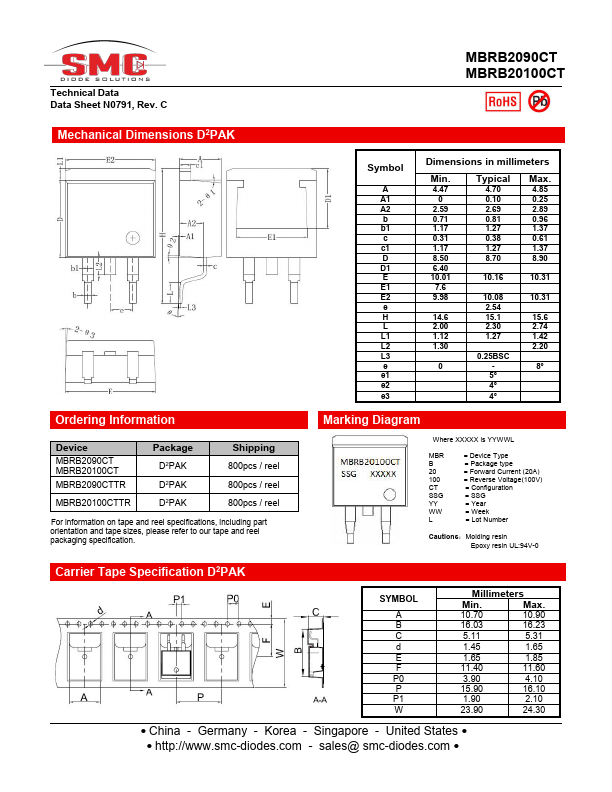

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRB2090CT
Manufacturer
SMC Diode
File Size
475.02 KB
Datasheet
MBRB2090CT-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
