MBRF2050CT SCHOTTKY RECTIFIER

SMC Diode

Description

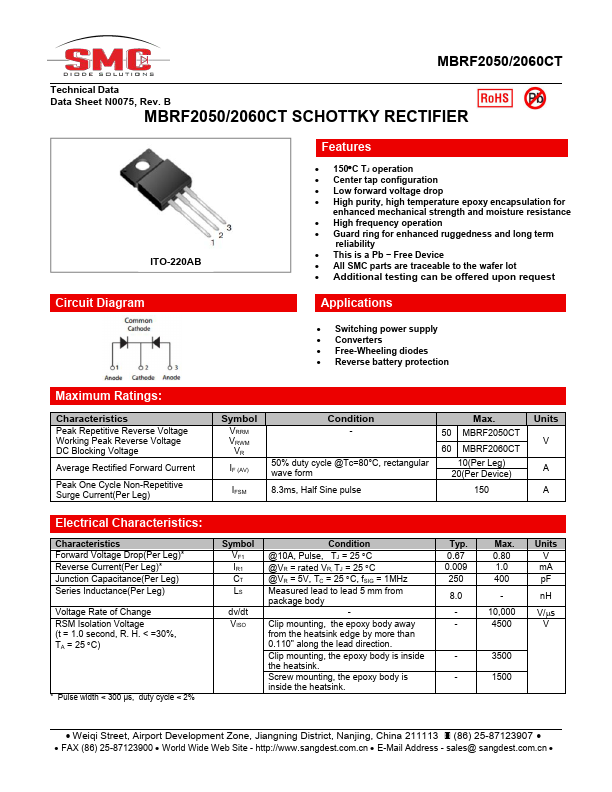

MBRF2050/2060CT Technical Data Data Sheet N0075, Rev.B MBRF2050/2060CT SCHOTTKY RECTIFIER ITO-220AB Circuit Diagram .

📥 Download Datasheet

MBRF2050CT Datasheet Preview — Preview of MBRF2050CT PDF

Datasheet Specifications

Part number: MBRF2050CT
Manufacturer: SMC Diode
File Size: 192.79 KB
Datasheet: MBRF2050CT-SMCDiode.pdf
Description: SCHOTTKY RECTIFIER

Features

* 150C TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetitive Surge Current(P
