MBRF10100CT SCHOTTKY RECTIFIER

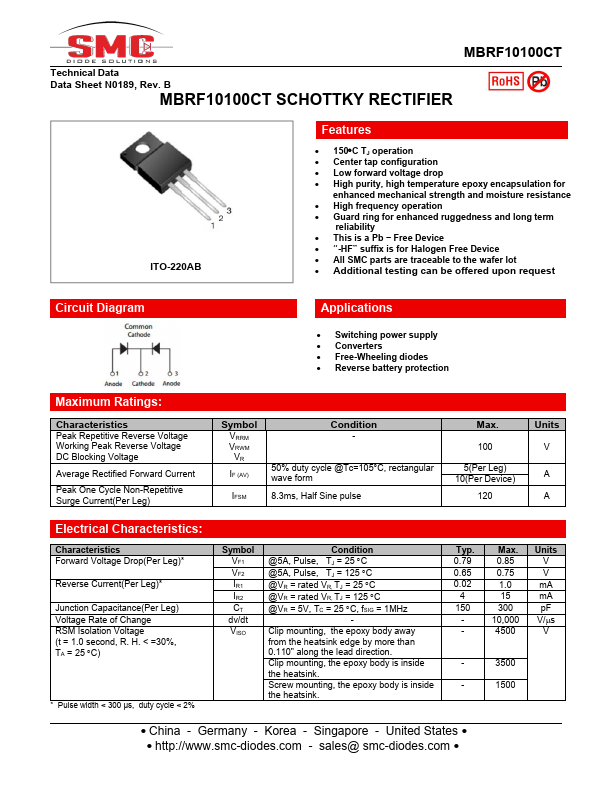

📥 Download Datasheet  Datasheet Preview Page 1

Description

MBRF10100CT Technical Data Data Sheet N0189, Rev.B MBRF10100CT SCHOTTKY RECTIFIER ITO-220AB .

📥 Download Datasheet

Preview of MBRF10100CT PDF

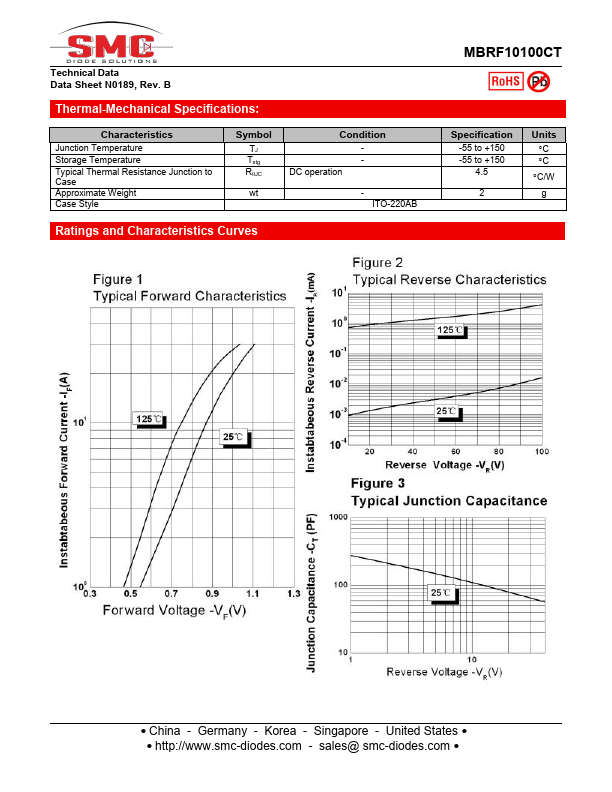

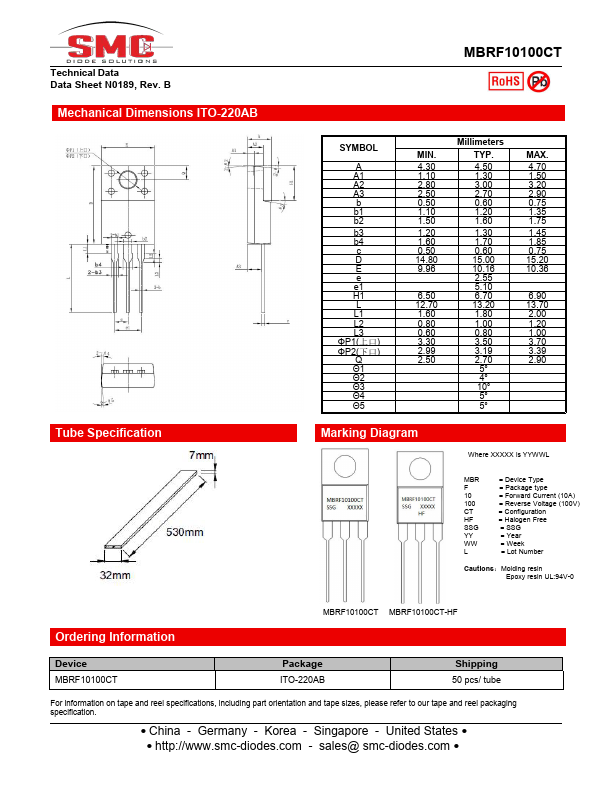

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MBRF10100CT
Manufacturer
SMC Diode
File Size
266.31 KB
Datasheet
MBRF10100CT-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER

Features

* 150C TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetitive Surge Current(P
