MBRF3080CT SCHOTTKY RECTIFIER

MBRF3080CT Description

Technical Data Data Sheet N1109, Rev.A MBRF3080CT SCHOTTKY RECTIFIER MBRF3080CT ITO-220AB Circuit Diagram .

MBRF3080CT Features

* 150C TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

MBRF3080CT Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetitive Surge Current(P

📥 Download Datasheet

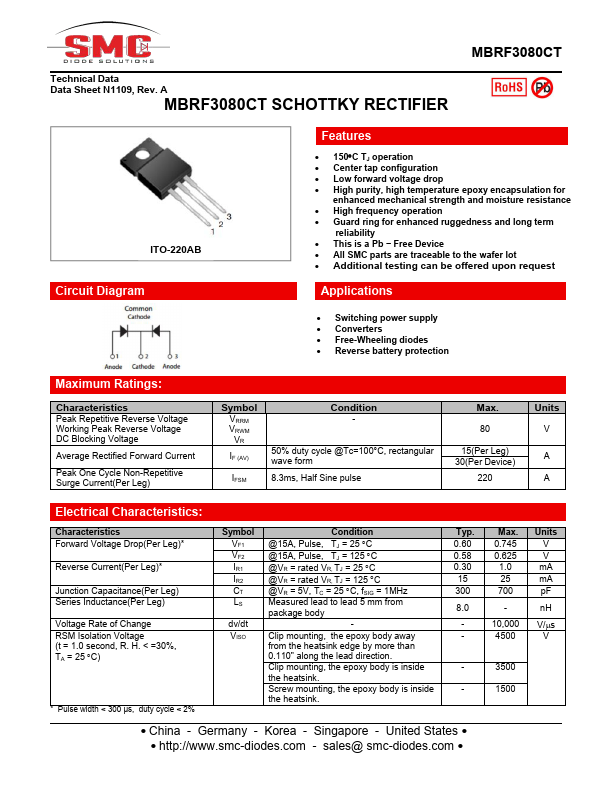

Preview of MBRF3080CT PDF

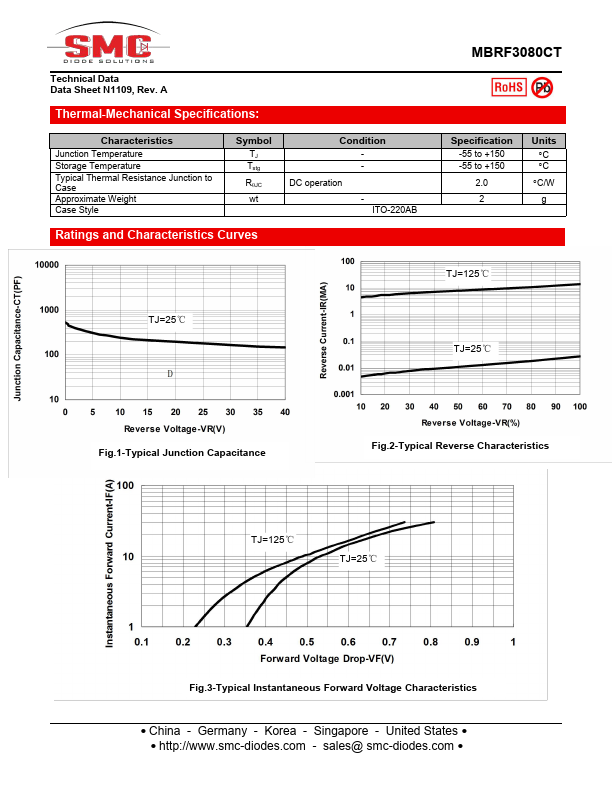

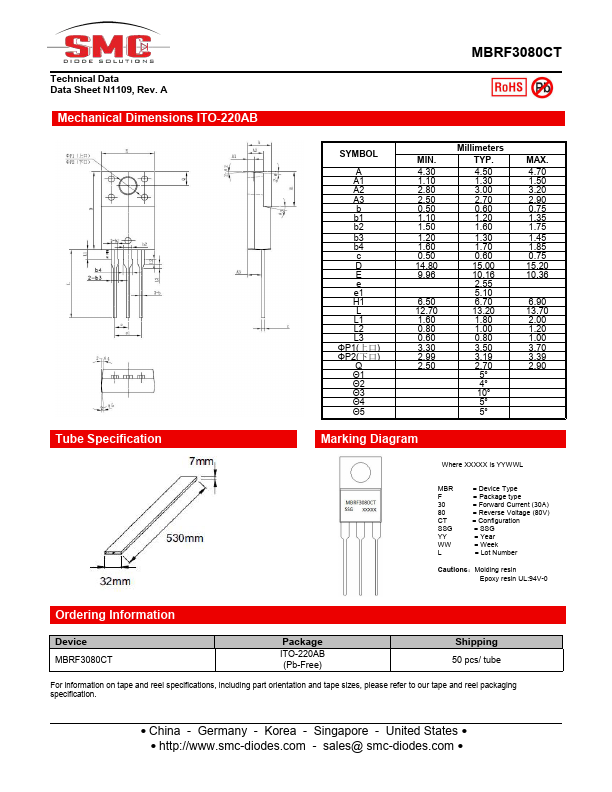

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRF3080CT
Manufacturer
SMC Diode
File Size
818.34 KB
Datasheet
MBRF3080CT-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
