RS1KL, RS1AL 1.0AMP SURFACE MOUNT FAST RECOVERY RECTIFIER

RS1KL Description

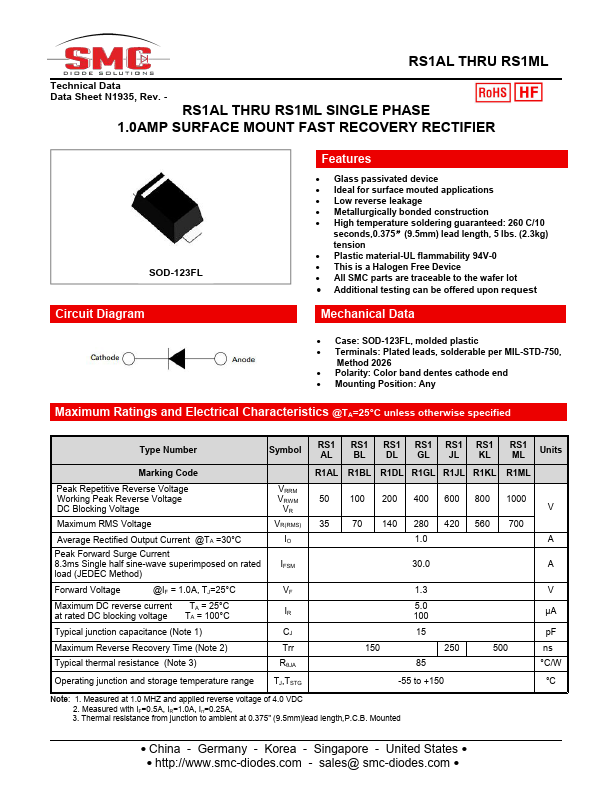

RS1AL THRU RS1ML Technical Data Data Sheet N1935, Rev.- RS1AL THRU RS1ML SINGLE PHASE 1.0AMP SURFACE MOUNT FAST RECOVERY RECTIFIER SOD-123FL Circuit.

RS1KL Features

* Glass passivated device

RS1KL Applications

* Low reverse leakage
* Metallurgically bonded construction
* High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension
* Plastic material-UL flammability 94V-0
* This is a Halogen Free Device
* All SMC parts are traceable to th

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS1KL, RS1AL. Please refer to the document for exact specifications by model.

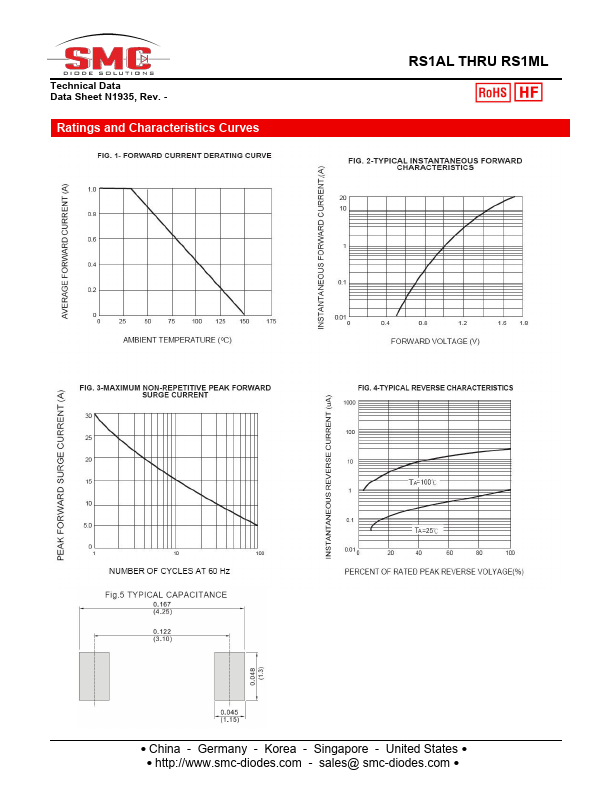

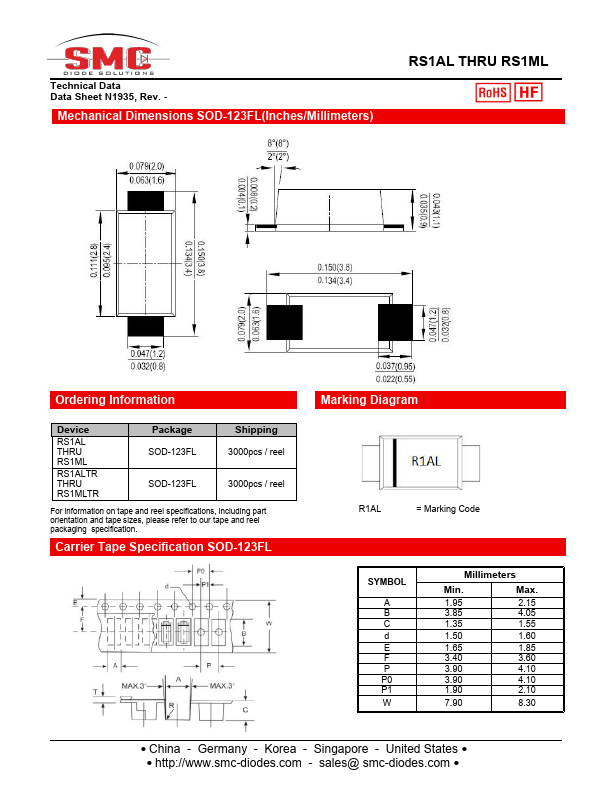

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS1KL, RS1AL
Manufacturer
SMC Diode
File Size
338.94 KB
Datasheet
RS1AL-SMCDiode.pdf
Description
1.0AMP SURFACE MOUNT FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: RS1KL, RS1AL.
Please refer to the document for exact specifications by model.
